Data Sheet

Code du produit:

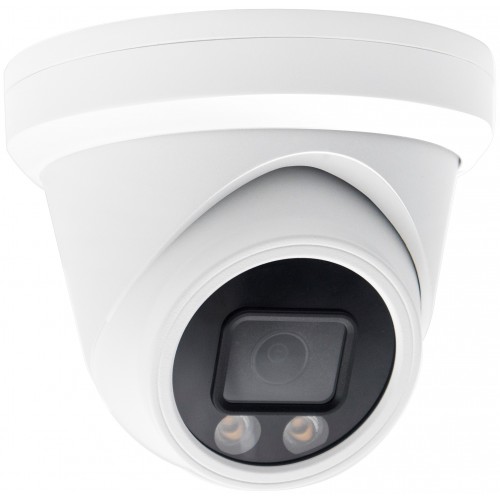

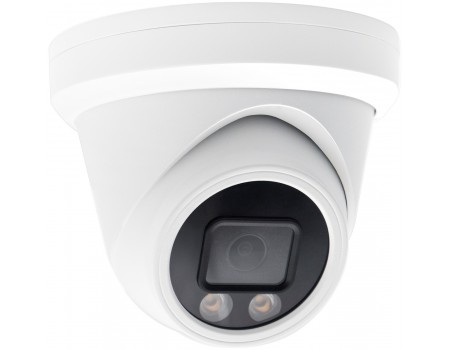

GX-CV726A-28

Résumé:

/ NDAA / 2PCS WARM LIGHT / Warm Light up to 30m (98ft) / 2.8MM LENS / POE / DC12V / IP66 / METAL HOUSING JUNCTION BOX OPTIONAL: GX-CV-BK80X WALL MOUNT: GX-CV-BK09D

Ø High quality imaging with 6 MP resolution

Ø 24/7 full color imaging
Ø HD 2.8mm F1.0 Starlight Lens
Ø Up to 30M Warm Light Distance
Ø H.265/H.264 dual-stream media server

Ø Lightning protection 4000V
Ø Strong water-proof housing, IP67
Ø RTSP and Onvf 17.06 compatible with many third-party NVR
Ø Optional customization Lens/Audio
/POE/Reset, etc.

Camera
Image Sensor
1/3" CMOS
Effective Pixels
6 megapixels
Electronic Shutter
AUTO, 1/25s ~ 1/10000s
Min. Illumination
0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night
Auto/Color/(B/W)/Timing
WDR
Digital WDR
White Balance
Auto/Manual
BLC /HLC
Support
DNR
2D/3D DNR
Other
AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay

Encode
Video Standard
H.265+/H.265/H.264
Video Resolution
Main Stream: 25fps@6MP(3072x2048)/5MP(2592x1944), 30fps@4MP/3MP/1080P/720P
Sub stream: 30fps@D1/VGA/360P/CIF, etc.
Video Bitrates
64Kbps - 8Mbps, VBR/CBR
Audio Standard
G.711-u/G.711-a/AAC
Built-in Mic
Optional
Illuminator
Leds
2PCS Warm White LEDs (3000K)
White Light Distance
25-30 M
Lens
Focal length
HD 2.8mm F1.0 Starlight
Optional Functions
POE/Audio/SD Slot/Reset etc.
Network Services
Protocol
HTTP(S)/RTSP/RTMP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P
Yes
Web
IE , Firefox 32bit ESR, etc.
Media
CMS, Android, IOS
General
Network Port
1-RJ45, 100Mbps, POE optional
Power Supply
12 VDC ± 10%
Power Consumption
< 10 W
Operating Temp.
-30?-(+60)?, 10%-90%RH
