Data Sheet

Code du produit:

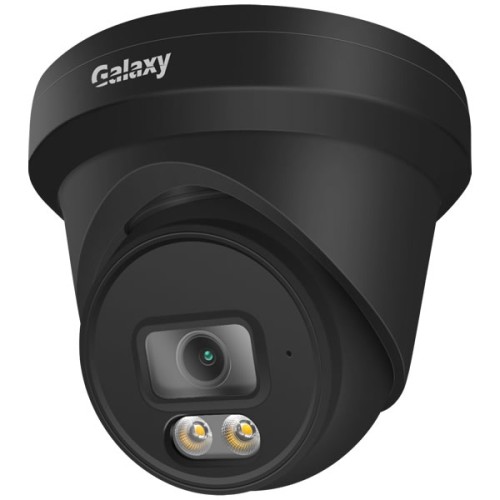

GX-CV728AB-28

Résumé:

4K/8MP, 3840x2160@20fps, H.265, DWDR, 0.001Lux, Lumière chaude jusqu'à 30m (98ft), Micro Intégré, Objectif Fixe 2.8mm, PoE, IP66, Facultatif : GX-CV- BK80X, GX-CV-BK09D

  • 1/2.8" Sony CMOS sensor
  • 4K resolution 3840 x 2160P
  • Low illumination 0.01Lux
  • Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
  • D-WDR, Motion Detection, Privacy Mask, Mirror
  • RTSP and Onvif 11.07 compatible
  • H.265/H.264 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Multi web browser, PC Client, mobile APP remote access
  • Internal Microphone, reset button optional
  • Lightning protection 4000V
  • RJ45 100mbps network port, IEEE802.3af PoE
  • Strong water-proof housing, IP66
  • 2PCS Soft & Warm Supplemental Light,Light distance:25-30M
  • HD 2.8mm F1.0 true starlight lens
Model GX-CV728A-28
Camera
Image Sensor 1/2.8" SONY IMX335 CMOS
Effective Pixels 3840 (H) x 2160 (V)
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.001Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Indoor/Outdoor
BLC Support
DNR 2D/3D DNR
Other Motion Detection, Privacy Mask, Mirror, flip
Encode
Embedded Solution Mstar 328Q
Video Standard H.264/H.265
Video Resolution Main Stream: 20fps@8MP(3840x2160), 30fps@6MP(3072x2048), 5MP(2592x1944)/4MP/3MP/1080P/720P,etc.
Sub stream: 720x480/VGA(640x480), 360P/QVGA@30fps,etc.
Video Bitrates 512Kbps - 12Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a
OSD Overlay Title and Time overlay


LedS
Leds 2PCS Soft & Warm Supplemental Light
Light Distance Up to 30m (98ft)
Lens
Focal length HD 2.8mm F1.0 true starlight lens
Audio
Microphone Built-in Mic
Network Services
Protocol HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P Yes
Web IE , Firefox, etc.
Media CMS, Android, IOS
ONVIF 2.6 compatible
General
Network Port 1-RJ45, 100Mbps,
Power Supply POE ,12 VDC +/- 10%
Power Consumption < 8 W
Operating Temp. -30°C-(+60)°C, 10%-90%RH
