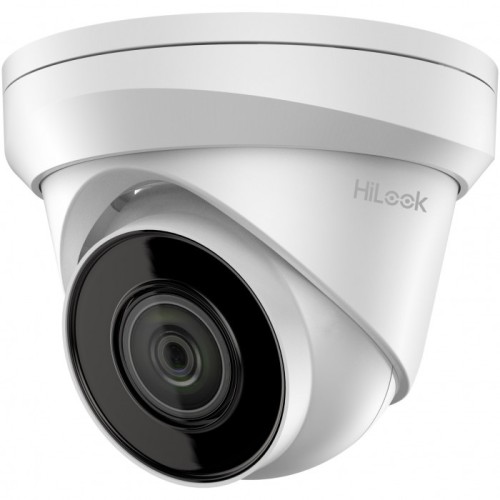

HiLook 4 MP ColorVu Fixed Turret Network Camera
HiLook 4 MP ColorVu Fixed Turret Network Camera
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

IPC-T249H(4mm)

Résumé:

4MP, 2560x1440, @20fps, H.265, 120dB WDR, Motion Detection, White Light, up to 30m (98ft), IP67, 4mm Lens, Fixed, DC12V

Connectez-vous pour le prix
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • 24/7 colorful imaging
Go to official website >>>
  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
  • Shutter Speed1/3 s to 1/100, 000 s
  • Day & Night24 Colorful imaging
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°

    4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.0
  • DORI
  • DORI

    2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

    4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

  • Illuminator
  • Supplement Light TypeWhite light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz: 20 fps (2560 × 1440)

    25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 20 fps (2560 × 1440)

    30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.264+/H.265/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region Of Interest (ROI)1 fixed region for main stream
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email, trigger capture
  • General
  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

  • Linkage MethodUpload to FTP, notify surveillance center, send email, trigger capture
  • Camera MaterialMetal & Plastic
  • Camera DimensionØ112 mm × 88.4 mm (Ø4.41" × 3.48")
  • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Camera WeightApprox. 370 g (0.8 lb.)
  • With Package WeightApprox. 640 g (1.4 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMC

    FCC-SDoC: 47 CFR Part 15, Subpart B;

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014;

    RCM: AS/NZS CISPR 32: 2015;

    KC: KN 32: 2015, KN 35: 2015

  • Safety

    CB: IEC 62368-1:2014+A11;

    CE-LVD: EN 62368-1:2014/A11:2017

  • Environment

    CE-RoHS: 2011/65/EU;

    WEEE: 2012/19/EU;

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013
