Data Sheet

Product Code:

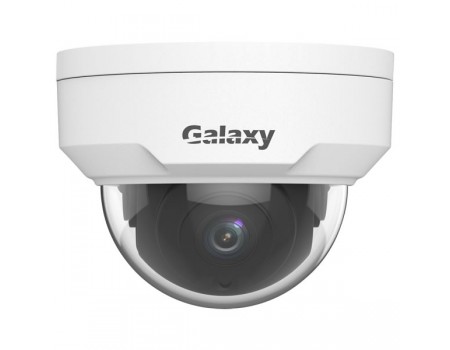

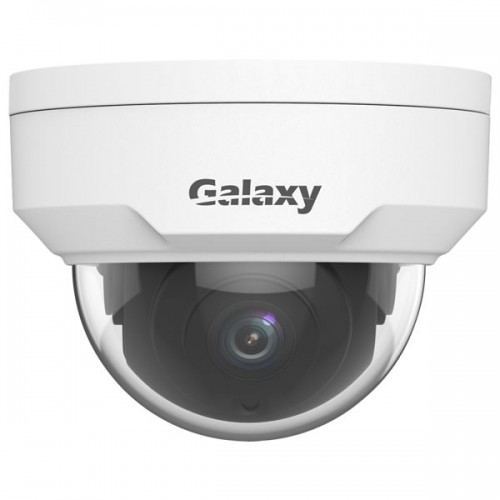

GX748MF-IR4-AI

Summary:

8MP, 3840x2160@20fps, Ultra265, 120dB WDR, 0.003Lux, IR up to 30m (98ft), Built-in Mic, Audio, Alarm, Human & Vehicle, MicroSD slot, 4mm Fixed Lens, PoE, IP67, IK10, Optional: GX-BK-JBE83X, GX-BK-WME03

  • High quality image with 8MP, 1/2.7"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
Camera
Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F1.6
DORI Distance Lens (4.0mm), Detect (120.0m), Observe (48.0m), Recognize (24.0m), Identify (12.0m)
Angle of View (H) 91.2°
Angle of View (V) 47.9°
Angle of View (O) 95.9°
Adjustment angle Pan: 3° ~ 360°, Tilt: 0° ~ 68°, Rotate: 3° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client Galaxy8000
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O Input: impedance 35kOhm; amplitude 2V [p-p]
Output: impedance 600Ohm; amplitude 2V [p-p]
Alarm I/O 1/1
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE, FCC
General
Power DC 12V+/-25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Dimensions (Dia. x H) Dia.109 x 83mm (Dia.4.3" x 3.3")
Net Weight 0.43kg ( 0.95lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing)
Surge Protection 4KV
Ingress Protection IP67
Vandal Resistant IK10
Reset Button N/A
