Data Sheet

Product Code:

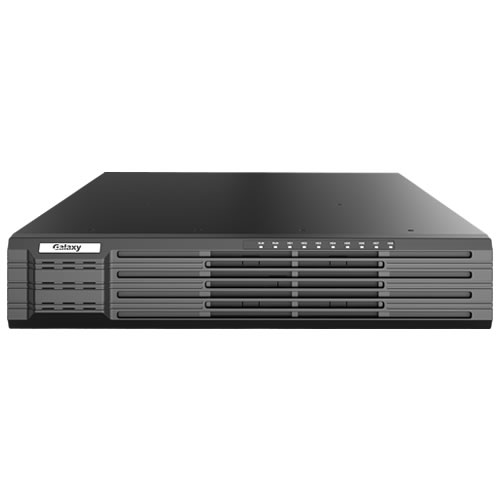

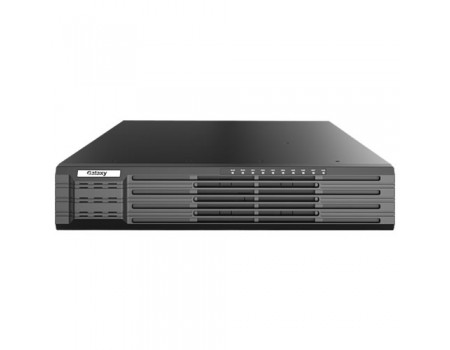

NVR8832R

Summary:

32CH IP up to 12MP (4000x3072), 320Mbps, 1x HDMI up to 4K, 1x VGA, H.265/H.264, 4x 12MP@20fps, Audio 1in/1out, Alarm 16in/4out, 2x RJ45 10/100/1000M, 8x SATA up to 8TB/ea, 2xUSB2.0, 1xUSB3.0, 1x RS-232, 1x RS-485

  • 32-channel input
  • Third-party IP cameras supported with ONVIF conformance
  • Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840x2160) resolution
  • Up to 12 Megapixels resolution recording
  • Support H.265/H.264 video formats
  • Accurate retrieval, instant playback
  • Support HDD hot swap with RAID1, 5 storage scheme configurable
  • 8 SATA HDDs, Up to 8TB for each HDD
  • Support various VCA detection alarm and VCA search
  • Support N+1 Hot spare
  • Support for 12V Power output
  • Support for P2P, UPnP, NTP, DHCP, PPPoE
  • Support for mobile client access

Video/Audio Input
IP Video Input 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
RemoteUsers 128
Video/Audio Output
HDMI/VGA Output HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
CVBS Output 1-ch, BNC
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Decoding
Compression H.265/H.264
Live view/ Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080P@25, 32 x 720P@25,64 x D1
Hard Disk
SATA 8 SATA interfaces
Capacity Up to 8TB for each HDD
Disk array
Array type RAID1, RAID5
External Interface
Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface 1 x RS232, 1 x RS485
USB Interface Rear panel: 2 x USB2.0, 1 x USB3.0
Alarm In 16-ch
Alarm Out 4-ch
General
Power Supply 100 ~ 240 VAC
Consumption (without HDD)
Working Temperature -10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity 10% ~ 90%
Dimensions 86mm x 442mm x531mm (3.4" x 17.4" x 19.9")
Weight (without HDD)
