NDAA Galaxy Pro 8MP/4K AI Turret Starlight IP Camera
NDAA Galaxy Pro 8MP/4K AI Turret Starlight IP Camera
   0 reviews  |  Write a review
Data Sheet

Product Code:

GX728MF-IR28B

Summary:

8MP, 3840x2160@15fps, 0.05Lux, 120dB WDR, Ultra265, Triple Streams, Day&Night(ICR), IR up to 98ft (30m), Human & Vehicle Detection, 3 Axis, Build in Analytics, Smart Function, SD card support 256GB, IP67, 2.8mm Fixed Lens, DC12V, PoE, Optional: Junction TR-JB03-G-IN-BK Wall Mount: TR-WM03-D

Login for price

Optics

* Day/night functionality

* Smart IR , up to 30m (98ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

* Up to 120dB WDR (Wide Dynamic Range

Compression

* Ultra 265, H.264, MJPEG

* Triple streams

* 9:16 corridor format

Network

* ONVIF Conformance

Structure

* Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

* Wide voltage range of ±25%

* IP67

* 3-Axis

Camera
Sensor1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.6
DORI Distance

Lens: 2.8mm, Detect(m): 50.4, Observe(m): 20.2, Recognize(m): 10.1, Identify(m): 5.0

Angle of View (H)118.1°
Angle of View (V)64°
Angle of View (O)153.5°
AdjustmentanglePan: 0°~360°
Tilt: 0°~90°
Rotate:0°~360°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.05Lux (F1.6, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52 dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264,MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:8MP (3840*2160): Max. 15 fps?
Sub Stream:1080P (1920*1080): Max. 30 fps;
Third Stream:D1(720*576) : Max. 30 fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
Recognition:Face detection?Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
ProtocolsIPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible IntegrationONVIF(Profile S), API
Interface
Network10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max.5.5W
Dimensions (Ø x H)?126 x 94 mm (Ø5.0” x 3.7”)
Weight0.33 kg(0.67 lb)
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress ProtectionIP67

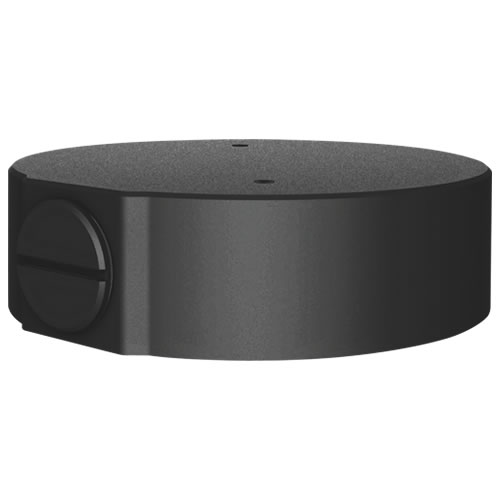

Junction Box

GX-BK-JB80XB


Wall Mount

GX-BK-WM02DB
