Data Sheet

Product Code:

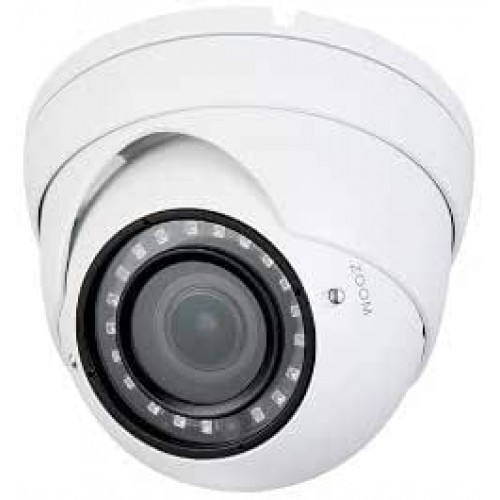

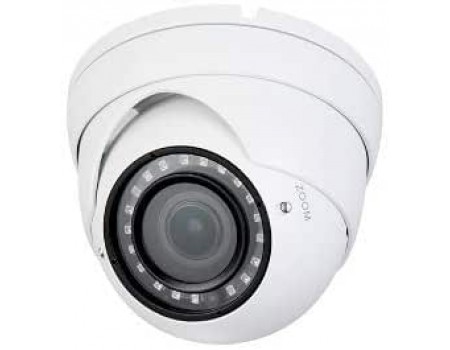

LTDHCT2623

Summary:

1920x1080@30fps, Day&Night(ICR), DWDR, IR up to 30m (98ft), OSD/UTC, IP67, 2.7-13.5mm Varifocal Lens, DC12V

  • Max 30fps@1080P
  • HD and SD output switchable
  • 2.7-13.5mm vari-focal lens
  • Max. IR length 30m, Smart IR
  • IP67, DC12V

Camera
Image Sensor 1/2.7" CMOS
Effective Pixels 1920(H)x1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 24
Lens
Lens Type Vari-focal lens / Fixed iris
Mount Type Board-in
Focal Length 2.7-13.5mm
Max Aperture F1.3
Angle of View H: 106°~30°
Focus Control Manual
Close Focus Distance 200mm, 7.87''
DORI Distance
Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect DORI Definition: 25px/m (8px/ft), Wide: 45m(148ft), Tele:148m(486ft)
Observe DORI Definition: 63px/m (19px/ft), Wide: 18m(59ft), Tele:59m(194ft)
Recognize DORI Definition: 125px/m (38px/ft), Wide: 9m(30ft), Tele:30m(97ft)
Identify DORI Definition: 250px/m (76px/ft), Wide: 5m(15ft), Tele:15m(49ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
Video
Resolution 1080P (1920x1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS, video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 3.5W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal
Resistance
IP67
Construction
Casing Aluminium
Dimensions Dia.119mmx97.4mm (Dia.4.69"x3.83")
Net Weight 0.37kg (0.82lb)
Gross Weight 0.51kg (1.12lb)
