Data Sheet

Product Code:

AC324-FD4M-2.8

Summary:

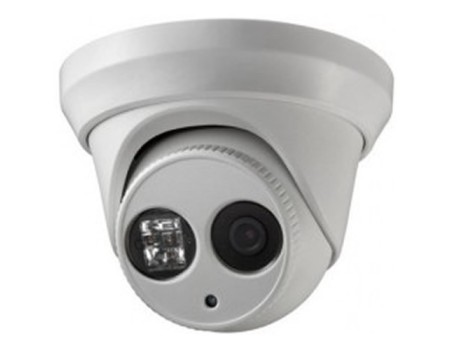

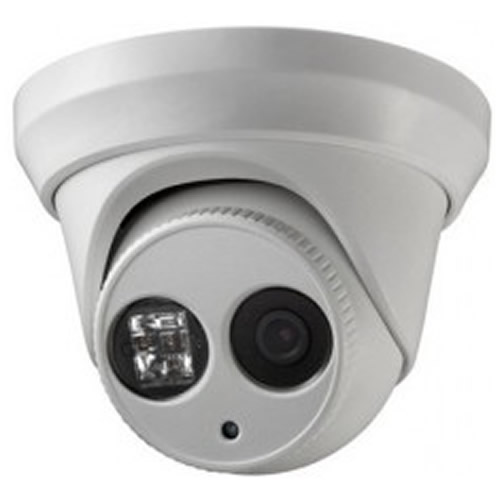

2MP, 1920x1080@25fps, 0.01 Lux, Day & Night, IR up to 40m (131ft), 2.8mm Lens, DC12V, IP66

  • 2 Megapixel high-performance CMOS
  • Analog HD output, up to 1080P resolution
  • True Day/Night, Smart IR
  • EXIR technology, up to 40m IR distance
  • IP66 weatherproof
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens 2.8mm
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ?62dB
Operating Conditions -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 40m
Dimension ?110 × 93.2 mm(?4.33” × 3.67”)
Weight 350 g
