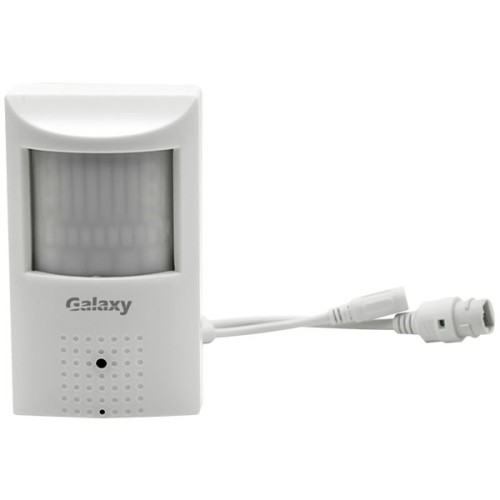

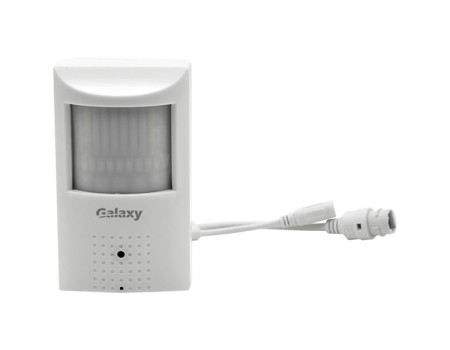

Galaxy NV 5MP UHD IR Mini Hidden IP Camera
Data Sheet
Product Code:
Product Code:
NV-PIR500
Summary:5MP, 2592 x 1944, 0.01Lux@F1.2, H.265, Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT, D-WDR, Motion Detection, Human Detection, 5MP@30fps, 12 pcs IR LEDs, IR up to 16m (49ft), 3.7mm pinhole fixed lens, PoE/DC12V, Plastic housing, IP65
- 1/3" CMOS sensor
- Max. 5MP resolution 2592 x 1944 output
- low illumination 0.01Lux
- 5MP HD resolution 2592 x 1944 realtime output
- Ultra low illumination 0.01Lux
- Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
- D-WDR, Motion Detection, Human Detection, Privacy Mask, Mirror
- RTSP and Onvif 17.06 compatible
- H.265/H.264 dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- RJ45 100mbps network port, IEEE802.3af PoE
- Lightning protection 4000V
- Plastic housing, IP65
- 12 x ?5 IR Leds, IR distance 10-15 meters
- HD 3.7mm MP Pinhole lens
| Model | NV-PIR500 |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Effective Pixels | 5 Megapixels |
| Electronic Shutter | AUTO |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: 30fps@5MP(2592x1944)/4MP/3MP/1080P/720P Sub stream: 30fps@D1/VGA/360P/CIF, etc. |
| Video Bitrates | 512Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| Built-in Mic | Optional |
| Smart Event | Human Detection Motion Detection |
| IR Led | |
| IR Led | 12x?5 IR Leds |
| IR Distance | 10-15 M |
| Lens | |
| Focal length | 3.7mm MP Pinhole lens |
| Optional Function | |
| POE, Audio, etc. | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
| P2P | Yes |
| Web | IE , Firefox 32bit ESR, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 5 W |
| Operating Temp. | -30?-(+60)?, 10%-90%RH |
