Data Sheet

Product Code:

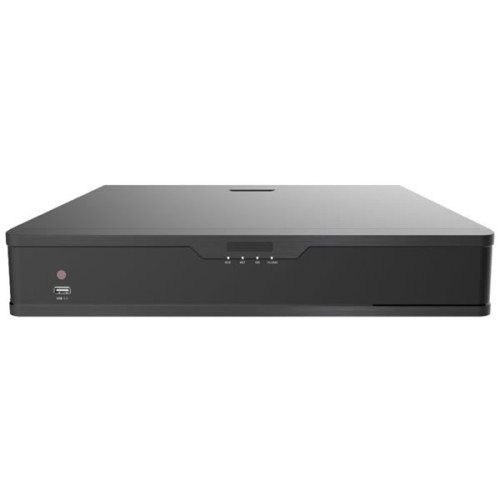

SR-32NE-I4-16P

Summary:

32CH IP up to 12MP, 320Mbps, 1x HDMI up to 4K, 1x VGA, Ultra 265/H.265/H.264, 1 x 12MP@30fps, 2 x 4K@30fps, Human & Vehicle Detection, Audio 1in/1out, Alarm 16in/4out, 1x RJ45 10/100/1000M, 4x SATA up to 10TB/ea, 1xUSB2.0, 1xUSB3.0

  • Support Ultra H.265/H.265/H.264 video formats
  • 16/32-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • HDMI and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • 4 SATA HDDs, Up to 10TB for each HDD
  • Support RAID 1, 5
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Model

SR-32NE-I4-16P

Video/Audio Input
IP Video Input 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
Browser IE(IE10/11) for Windows, Firefox (version 52.0 and above) for Windows, Chrome(version 45 and above) for Windows, Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Live View Display 1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format Ultra 265, H.265, H.264
Live View/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1
Hard Disk
SATA 4 SATA interfaces
Capacity Up to 10TB for each HDD, (The maximum HDD capacity varies with environment temperature)
eSATA NA
Disk Group Support
RAID RAID 1,5
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area,  Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search Behavior Search, Vehicle Search
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera Total 8-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232 NA
RS485 1
Alarm In 16-ch
Alarm Out 4-ch
PoE
Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 150W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100~240V AC, Power Consumption: </= 20 W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity </= 90% RH (non-condensing)
Dimensions (WxDxH) 400mm x 363mm x 74mm (15.7" x 14.3"x 2.9")
Weight (without HDD) </=4Kg (8.82lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4
