Data Sheet

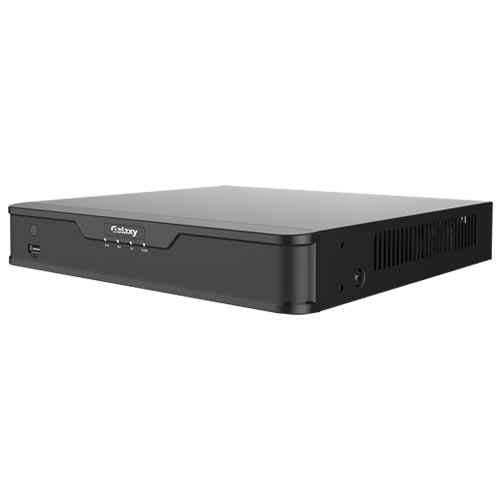

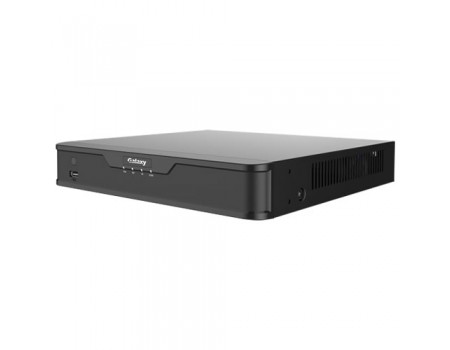

Product Code:

GX-PRO-HDVR-204

Summary:

2CH IP input, 4CH BNC input: AHD/TVI/CVBS up to 5MP, H.264, 5MP@10fps, 4MP@12fps, 3MP@16fps, 2MP@25fps, 1MP/960H@30fps, HDMI, VGA, Audio, 1xSATA up to 8TB, RJ45, RS485, 2xUSB2.0, DC12V, Smartphone Support

  • SupportH.264 video formats
  • Support AHD, TVI, CVBS, IP cameras with adaptive access
  • Support for conversion of analog channels to digital channels
  • 4-channel BNC input
  • Up to 5MP resolution for recording
  • Support 1-ch HDMI, 1-ch VGA output at up to 1920*1080P
  • Long transmission distance over coax cable
Video/Audio Input
Analog Video Input 4-ch, BNC
IP Video Input 2-ch (only IP up to 6ch)
Supported AnalogCamera Types Support AHD input:5MP, 4MP, 3MP, 1080P/30 Hz,1080P/25Hz,720P/30 Hz,720P/25 Hz,
Support TVI input:5MP,3MP,1080P/30 Hz, 1080P/25Hz,720P/30 Hz, 720P/25 Hz,
Support CVBS input
Audio Input 4-ch, RCA
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output /
HDMI/VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 5MP/ 4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF
Frame Rate Mainstream:5MP@10fps/4MP@12fps/3MP@16fps /1080P@25fps/720P@30fps/960H@30fps
Sub stream: 960H/D1@16fps/CIF/QCIF@25fps/30fps
Audio Output 1-ch, RCA
Synchronous Playback 6-ch
Decoding
Decoding format H.264
Live View/ Playback 5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF
Hard Disk
SATA 1 SATA interface
Capacity Up to 8TB for each HDD
External Interface
Network Interface 1RJ45 10M/100M self-adaptive Ethernet Interfaces
Serial Interface 1 x RS485
USB Interface Rear panel:1 x USB2.0,Front panel:1xUSB2.0
General
Power Supply 12V DC
Power Consumption:
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity
Dimensions(WxDxH) 260 x 240 x 44mm (10.2" x 9.4"x1.7")
Weight ( without HDD )
Physical Interfaces

...
