Data Sheet

Product Code:

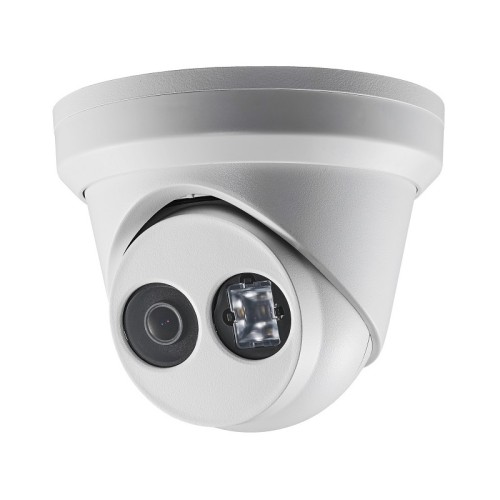

NV724F-IR28

Summary:

4MP, 2688x1520@30fps, 2.8mm, 0.018 Lux @ F1.6, Matrix IR 2.0, up to 100ft, H.265, H.265+, H.264, H.264+ Ready, True WDR 120dB, IP67, MicroSD Slot up to 128GB, DC 12V, PoE Clearance / Final Sales / 3 Month Warranty

• 1/3" Progressive Scan CMOS
• 2560 × 1440@30fps
• 2.8mm fixed lens
• Color: 0.01 Lux @ (F1.2, AGC ON),0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• Three streams
• 120dB WDR
• 2 Behavior analyses, and face detection
• BLC/3D DNR/ROI
• IP67
• Built-in micro SD/SDHC/SDXC card slot,up to 128 GB
• 3-Axis adjustment

Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3s to 1/10,000 s
Slow Shutter Yes
Auto-Iris No
Day&Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Focal length 2.8mm
Aperture F1.6
Focus Manual
FOV 2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
Lens Mount M12
IR Range Up to 30 m
Wavelength 850nm
Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream and sub-stream support
H.265 Type Main Profile
H.265+ Main stream and sub-stream support
Video Bit Rate 32 Kbps to 16 Mbps
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 2560 × 1440
Main Stream 50Hz:25fps (2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping No
Day/Night Switch Auto/Schedule
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conict, illegal login, HDD full, HDD erro
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-fiicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version V5.5.2
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users 3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding
Reset Button Yes
Operating Conditions -30 °C –60 °C (-22 °F –140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, ? 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.5A, max. 6W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Protection Level IP67, IK10 TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material Metal
Dimensions Camera:?127.3 × 95.9 mm (?5.0" × 3.8") Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight Camera: Approx. 610 g (1.3 lb.) With Package: Approx. 880 g (1.9 lb.)
