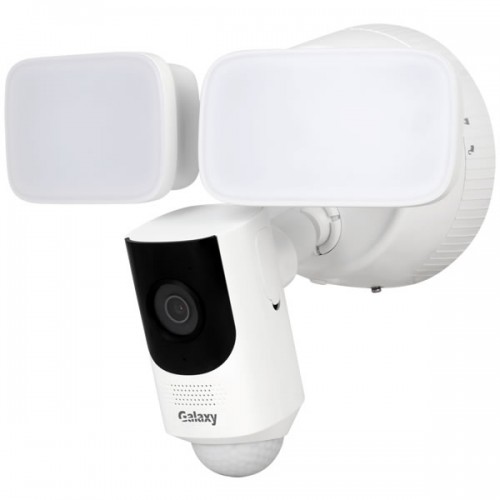

Galaxy Hunter 4MP WiFi Floodlight Camera
Galaxy Hunter 4MP WiFi Floodlight Camera
   0 reviews  |  Write a review
Data Sheet

Product Code:

IPC-L46N-CAN

Summary:

4MP, 2560x1440@30fps, Smart H.265+, DWDR, 0.005Lux@F1.6, IR up to 10m (33ft), Floodlight up to 30m(98ft), PIR, Day & Night, SMD, Built-in Mic & Speaker, Alarm & Siren, MicroSD Card slot, IP65, 2.8mm Fixed Lens, AC100~240V

Login for price
  • 1/3-in. 4MP Progressive-scan CMOS Sensor
  • 4MP (2560 x 1440) at 30 fps, 2.8 mm Fixed Lens
  • 2.4 or 5 GHz Wifi Options, IEEE802.11a/b/g/n/ac
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • Maximum Resolution of 4MP at 30 fps
  • Active Alarm with Integrated 110 dB Siren and Floodlight
  • Built-in Microphone and Speaker
  • IP65 Ingress Protection
Camera
Image Sensor 1/3-in. 4MP CMOS
Effective Pixels 2560 (H) × 1440 (V)
RAM/ROM 512 MB/128 MB
Electronic Shutter Speed 1/3 s to 1/100,000 s
S/N Ratio > 56 dB
Minimum Illumination Color (30 IRE): 0.005 Lux at F1.6 B/W (30 IRE): 0.0005 Lux at F1.6
IR (Illuminator On): 0 lux
Illuminators One (1) IR LED
Two (2) Floodlights
Illuminator On/Off Control Auto, Manual
Illumination Distance IR: 10 m (32.81 ft)
Floodlight: 30 m (98.43 ft)
Floodlight Brightness 1500 to 2400 lm
Floodlight Color Temperature Warm: 3000K±200K Cool: 6000K±300K
Floodlight Modes Motion Activation
Manual Schedule
PIR Activation
Pan/Tilt/ Rotation Range Camera Pan: –85° to 85°, Tilt: –90° to 45°, Rotation: 0° to 360°; Floodlight Tilt: –90° to 90°, Rotation: –145° to 145°
PIR Sensor Distance1 10.0 m (32.81 ft)
PIR Detection Range 270°
Lens
Lens Type Fixed
Lens Mount M12
Focal Length 2.8 mm
Maximum Aperture F1.6
Field of View Horizontal 98°, Vertical 55°, Diagonal 115°
Iris Type Fixed
Close Focus Distance 1.0 m (3.28 ft)
DORI2 Distance Detect 61.2 m (200.79 ft), Observe 24.5 m
(80.38 ft), Recognize 12.2 m (40.03 ft), Identify 6.1 m (20.01 ft)
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264H,
H.264B, MJPEG
Streaming Capability Three (3) Streams
Resolution 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p
(1920 × 1080), 1.3MP (1280 × 960), 720P (1280 ×
720), D1 (704 × 480), VGA (640 × 480), CIF (352 ×
240)
Frame Rate Main Stream: 2560 × 1440 at 30 fps, Sub Stream 1: 704 × 480 at 30 fps, Sub Stream 2: 640 × 480 at 30 fps
Bit Rate Control CBR/VBR
Video Bit Rate H264: 32 kbps to 8192 kbps
H265: 32 kbps to 8192 kbps
Day/Night Auto, Color, B/W
Backlight Compensation BLC, HLC, DWDR
White Balance Auto, Natural, Street Lamp, Outdoor, Manual,
Regional Custom
Gain Control Auto, Gain Priority, Shutter Priority, Manual
Image Rotation 0°, 90°, 180°, 270°
Image Mirroring Supported
Noise Reduction 3DNR
Motion Detection Off/On (4 Areas, Rectangular)
Region of Interest (RoI) 4 Areas
Privacy Masking 4 Areas
Advanced Features Smart Illumination
Audio
Built-in Microphone Yes
Built-in Speaker Yes
Compression G.711a, G.711Mu, G.726, PCM
Network
WiFi IEEE802.11a/b/g/n/ac 2.4–2.4835 GHz and 5.18–
5.85 GHz
Protocol IPV4, IPV6, ARP and Ping, TCP, UDP, HTTP, RTSP,
HTTPS, DDNS, Email, SNMP, Multicast, Auto Registration, Wireless Qos, Wi-Fi Setting, Hotspot Scanning, 802.1x, UPnP Status, Bonjour, UPnP,
Device Discovery
Interoperability ONVIF, CGI, P2P, RTMP, SDK, API
Maximum User Access 6 Users (Total Bandwidth: 36 Mbps)
Edge Storage FTP, SFTP, MicroSD Card (Maximum 256 GB), NAS
Web Viewer Microsoft Edge, Chrome, Firefox
Management Software DMSS
Mobile Operating System Android, iOS
Cybersecurity Video Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, Generating/ Importing X.509 certification, HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade
Alarm
Event No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Security Exception, Motion Detection, Video Tampering, Sence Changing, SMD (Human, Animal, Vehicle), Audio Detection, Intensity Change
Electrical
Power Supply 100 to 240 VAC
Power Consumption Basic: 5.2 W (100–240 VAC)
Maximum (Illuminator+IPC): 48.3 W (100–240 VAC)
Environmental
Operating Temperature –20 °C to +50 °C (–4 °F to +122 °F)
Operating Humidity ? 95%
Storage Temperature –20 °C to +50 °C (–4 °F to +122 °F)
Protection IP65
Structure
Casing Metal, Plastic
Product Dimensions (L x W x H) 270.7 mm × 217.2 mm × 195.6 mm
(10.66 in. × 8.55 in. × 7.70 in.)
Net Weight 1.40 kg (3.09 lb)
Gross Weight 1.88 kg (4.14 lb)
Certifications
Safety EN62368-1
Electromagnetic Compatability (EMC) Electromagnetic Compatibility Directive 2014/30/EU Radio Equipment Directive 2014/53/EU
47 CFR FCC Part 15, Subpart B
