Data Sheet

Product Code:

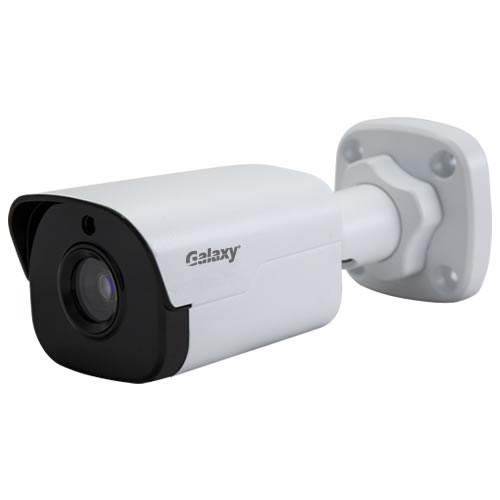

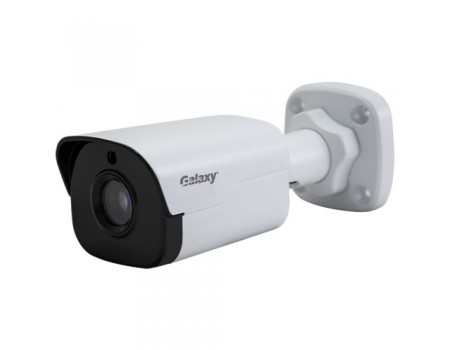

GX844MF-IR6

Summary:

1/3" CMOS, ICR, 2688x1520@20fps, 120dB WDR, H.265, Triple streams, Smart Functions, IR up to 98ft (30m), IR Anti-Reflection Window, IP66, 6mm Fixed Lens, DC12V / PoE

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 3D DNR (Digital Noise Reduction)
  • H.265
  • Triple streams
  • 9:16 corridor format
  • ONVIF Conformance
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of +/-25%
  • IP66
Camera
Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Lens6mm
ShutterAuto/Manual, 1/6~1/8000 s
Min. IlluminationColour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
IR RangeUp to 30m (98 ft) IR range
S/N>55dB
WDR120dB
Noise Reduction2D/3D
Video
Max. Resolution2592x1520
Video CompressionH.265/H.264/MJPEG
Frame Rate4MP (2592x1520): Max. 20 fps; 4MP (2560x1440): Max. 25 fps 3MP (2048x1520): Max. 30 fps; 1080P (1920x1080): Max. 30 fps
Video StreamingTriple
9:16 Corridor ModeSupported
ROISupported
OSDUp to 8 OSDs
Motion DetectionUp to 2 areas
Privacy MaskUp to 4 areas
Network
ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS
Compatible IntegrationONVIF, API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L x W x H)157.3 x 62.4 x63 mm (6.2" x 2.5" x 2.5")
Weight0.45 kg (0.99 lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity
Ingress ProtectionIP66

Junction Box

GX-BK-JB07
