Caméra IP dôme fixe infrarouge Galaxy Hunter Series 4MP Lite AI Starlight - 2,8 mm
Data Sheet
Code du produit:
Code du produit:
GX-HT744AB-AI-28
Résumé:2688x1520, H.265 +, WDR, 0,005 Lux, 164ft IR, Slot MicroSD, Audio, Alarme, SMD, Protection du périmètre, Objectif 2,8 mm, DC12V / PoE, IP67, IK10
- Capteur d'image CMOS 4MP, 1 / 2,7 ", faible éclairement, haute définition d'image
- Sorties max. 4MP (2688x1520) à 30 ips
- Codec H.265, taux de compression élevé, faible débit binaire
- LED IR intégrée, max. Distance IR: 50 m
- ROI, SMART H.264 + / H.265 +, codage flexible, applicable à divers environnements de bande passante et de stockage
- Mode de rotation, WDR, 3D DNR, HLC, BLC, tatouage numérique, applicable à diverses scènes de surveillance
- Détection intelligente: intrusion, tripwire
- Détection d'anomalie: détection de mouvement, altération vidéo, changement de scène, détection d'anomalie audio, pas de carte SD, carte SD pleine, erreur de carte SD, déconnexion du réseau, conflit IP, accès illégal, détection de tension
- Alarme: entrée, sortie; Audio: entrée, sortie; Prend en charge max. Carte Micro SD 256 G
- Prise en charge de l'alimentation 12 V CC / POE
- Protection IP67, IK10
- SMD
| Camera | |
| Image Sensor | 1/2.7”4Megapixel progressive CMOS |
| Effective Pixels | 2688 (H) ×1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux@F1.6 |
| IR Distance | 50 m (164.0 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 3 (IR LEDs) |
| Pan/Tilt/Rotation Range | Horizontal: 0°–355°; vertical: 0°–65°; rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122° |
| Iris Type | Fixed aperture |
| Close Focus Distance | 0.9 m (3.0 ft) |
| DORI Distance | Detect 56m(183.7 ft), Observe 22.4m(73.5 ft), Recognize 11.2m(36.8 ft), Identify 5.6m(18.4 ft) |
| Professional, Intelligent | |
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main stream (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25/30 fps) third stream (1280 × 720@1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G726; AAC |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
| Scene Self-adaptation | Yes |
| User/Host | 20 (Total bandwidth: 64 M) |
| Edge Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Cloud; NAS |
| Browser | IE: IE8, IE9, IE11, Chrome, Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS; Android |
| Port | |
| Audio Input | 1-channel (RCA port) |
| Audio Output | 1-channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | <7.3W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than?95% |
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Ingress Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Dimensions | 81 mm × ?109.9 mm (3.2" × ?4.3") |
| Net Weight | 378 g (0.8 lb) |
| Gross Weight | 523 g (1.2 lb) |

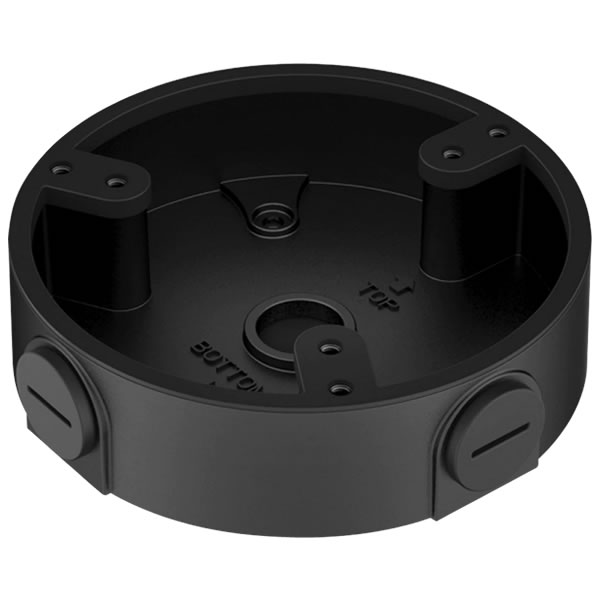

Junction Box
GX-HT-BK-JB82XB
Wall Mount
GX-HT-BK-WM02DB
