Data Sheet

Code du produit:

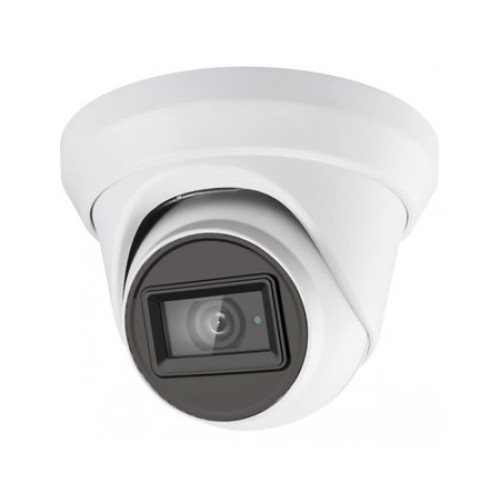

AC328-FD4-3.6

Résumé:

8.3MP, 3840x2160@12.5fps, 105dB DWDR, TVI/CVI/AHD/960H, Day&Night(ICR), 0.01 Lux@F1.2, Smart IR, IR up to 98ft (30m), OSD/UTC, IP67, 3.6mm Fixed Lens, DC12V

  • 8.29 MP high performance CMOS
  • 3840 x 2160 resolution
  • 2.8 mm fixed lens
  • EXIR 2.0, smart IR, up to 30 m IR distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • Up the coax (UTC?C)
Camera
Image Sensor8.29 megapixel progressive scan CMOS
Signal SystemPAL/NTSC
Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N
Resolution3840 (H) x 2160 (V)
Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
IR RangeUp to 30 m
Video Output1 HD analog output
SynchronizationInternal synchronization
Lens2.8 mm fixed lens
Horizontal Field of View102.2°
Lens MountM16
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
White BalanceAuto/Manual
BLCYes
Menu
AGCYes
DWDR105 dB
LanguageEnglish
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS
General
Power Supply12 VDC ±25%
Power ConsumptionMax. 5.3 W
DimensionsØ109.82 mm × 91.03 mm (Ø 4.32" × 3.6" )
WeightApprox. 320 g (0.71 lb.)
MaterialMetal
Operating Conditions?40 °C to 60 °C (?40 °F to 140 °F), humidity: 90% or less (non?condensation)
CommunicationUp the coax, Protocol: UTC?C (TVI output)
Protection (General)IP67
