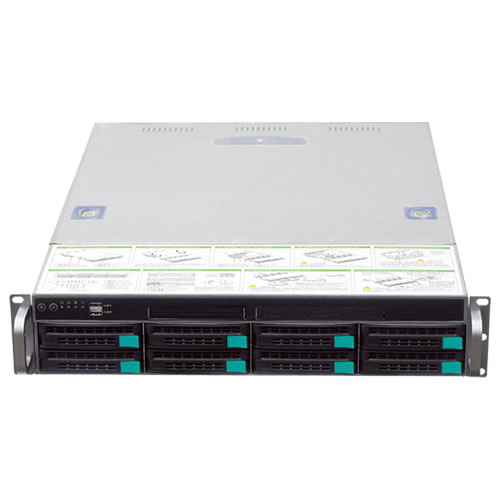

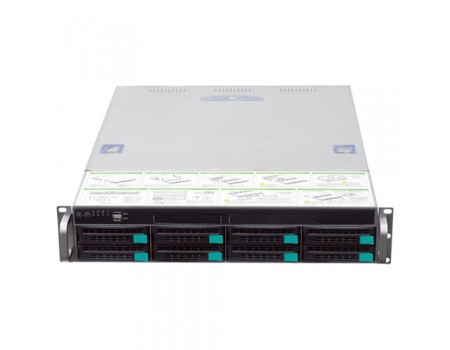

NVSS 64CH Essential Series Super NVR (8 échangeables à chaud, support à distance, RAID 5/6)
Data Sheet
Code du produit:
Code du produit:
NVSS6308A02
Résumé:64CH, 5MP, 3MP, 1080P, 720P, D1, Soutenir 8 disques durs SATA remplaçables à chaud, Jusqu'à 32TB, Linux embarqué, HDMI, Audio, H.264, Ports RJ45 1000Mbps, USB, POS, Surveillance réseau multiple, Assistance à distance
- X86 embarqué linux super NVR, avec SV6-B75A6 moterboard + intel i3 CPU + 8G RAM
- Jusqu'à 64 connexions IPC 5M/4M/3M/1080P et enregistrement et entrée totale de 256 Mbps
- Soutenir la fonction de décodage de matériel de GPU
- Jusqu'à 16ch 5M/4M/3M/1080P ou 32ch 720P ou 64ch D1 aperçu en temps réel
- Jusqu'à 16ch 5M/4M/3M/1080P/720P lecture relatime
- Soutenir 8 disques durs SATA remplaçables à chaud, Raid5/6 fucntion
- Soutenez toutes les séries de netvision IPC, Dahua, hikvision, Nihon etc.
- Conformité ONVIF version 2.3, prise en charge des enregistrements de mouvement avec ONVIF IPC
- Soutenir 7 différentes fonctions d'analyse vidéo
- 2 HDMI + 1 VGA; 2 adaptateur réseau Intel 1000M; E/S: 4 entrées/2 sorties; Cas 2U
- Avec la carte A02 mSata par défaut (linux destop version OS);
| Model | NVSS6308 |
| Main Processor | Intel i3 as default, i5 and i7 optional |
| RAM | 8GB |
| Operating System | Embedded Linux |
| System Resources | live, recording, playback, backup & remote access |
| Control Mode | Mouse |
| IP Camera Input | Max 64 channel 1080P (25/30 fps & 4°bps) |
| IP Camera Supported List | Netvision, Hikvision, Dahua, XiongMai, Topsee, NIHON, ONVIF etc. IP cameras |
| Video Output | Up to 3-screen output: 2 HDMI or 1HDMI + 1 VGA |
| Voice Intercom | 1ch audio & 1ch Mic in, 1ch audio out |
| Display Split | 1/4/6/8/9/13/16/20/28/33/36/49/64 |
| Resolution | Self adapted, supports 1920*1080 / 1600*1050 / 1280*1024 / 1024*768 |
| Tour Display | 16 Display groups with sequence supported |
| OSD | Camera title, time, date, video loss, recording |
| Compression | H.264 |
| Recording Resolution | 5M, 4M, 3M, 1080P, 720P, 960H, D1, CIF, QCIF, VGA |
| Max Encoding Speed | 64ch 1080P @ 25/30fps |
| Recording Bit Rate | 4Mbps for each, Max 256Mbps |
| Recording Quality | -- |
| Recording Mode | Manual, Schedule(Continuous, Motion detection, Sensor, Normal & Motion, Normal & Sensor, Stop |
| Recording Priority | Manual >Alarm >MD >Regular |
| Trigger Events | Recording, PTZ movement, Alarm, Email, Buzzer |
| Motion Detection | Support |
| Video Loss & Camera Blank | Support |
| Alarm Input | 4 channel |
| Relay Output | 2 channel |
| Playback Channel | 16ch@5M / 4M / 3M / 1080P / 1.3M / 720P / D1 |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search, Icon Search |
| Playback Function | Simultaneous play, single frame, Icon Search, Record mode filter, Backup, Grab |
| Backup Mode | USB HDD, network download |
| Ethernet | 2 * independent 1000Mbps RJ45 ports |
| Max Remote Users | Upload max 256 channel video |
| Hard Disk | 4 * SAS Ports support to connect 8 * 6TB Hot-Swap, up to 32TB totally |
| HDD Management | Auto search HDD and set to ready for record |
| USB Interface | 4 USB 3.0 |
| RS232 | 1 |
| Power Supply | 100V-240Vac, 47-63Hz |
| Power Consumption | Max. 700W(Include HDD) |
| Working Environment | -- |
| Dimension | 550mmx440mmx88mm (WxDxH) |
| Weight | About 15kg |
