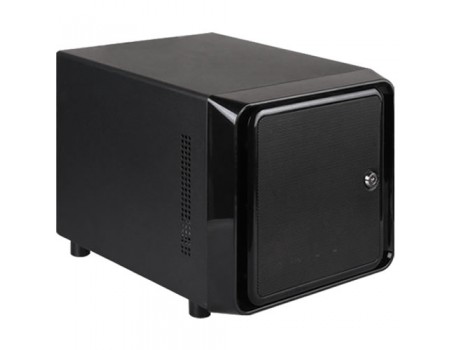

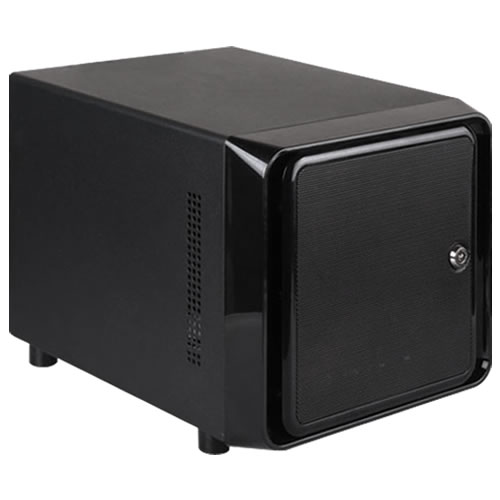

NVSS 36CH Essential Series Super NVR (4 échangeables à chaud, support à distance, RAID 5/6)
Data Sheet
Code du produit:
Code du produit:
NVSS6104A02
Résumé:36CH, 5MP, 3MP, 1080P, 720P, D1, Soutenir 4 disques durs SATA remplaçables à chaud, Jusqu'à 16TB, Linux embarqué, HDMI, Audio, H.264, Ports RJ45 1000Mbps, USB, POS, RAID5 pris en charge, Surveillance réseau multiple, Prise en charge du navigateur IE Support Remote
- X86 embarqué linux super NVR, avec carte mère NVSS-N6105 + 4G RAM;
- Jusqu'à 36 connexions IPC 1080p et enregistrement,
- Soutenez la fonction de décodage de matériel de GPU;
- Jusqu'à 9ch 5M/4M/3M/1080P/16ch 720P/36ch D1 aperçu en temps réel;
- Jusqu'à 9ch 5M/4M/3M/1080P/16ch 720P Relecture de lecture;
- jusqu'à 4 disques durs SATA remplaçables à chaud; RAID5/6 pris en charge;
- 1 sortie HDMI + 1VGA, 2 adaptateur réseau Intel 1000M, 6 interface USB;
- Cas de NAS; Entrée 100-240VAC;
- Avec la carte A02 mSata par défaut (linux destop version OS);
| Model | NVSS6104A02 |
| System | |
| Main Processor | Embedded Intel celeron quad core CPU |
| Operating System | Embedded LINUX |
| Motherboard | NVSS-N6105 Embedded Motherboard |
| Memory | 4GB |
| Case | Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design |
| Fan | 1 Dual ball screw bearing fan, MTBF>25,000h, support replacement during operation |
| Interface | Local GUI &WEB GUI |
| Video & Audio | |
| Input | 36ch@5M / 3M / 1080P / 720P / D1 |
| Transmission | 36ch@5M / 3M / 1080P / 720P / D1 |
| Recording | 36ch@5M / 3M / 1080P / 720P / D1 |
| Preview | 9ch 5M(12fps) / 3M(20fps) / 1080P(30fps) / 18ch 720P / 36ch D1 realtime preview |
| Playback | 9ch 5M(12fps) / 3M(20fps) / 1080P(30fps) / 16ch 720P / D1 |
| Recording Resolution | 5M, 3M, 1080P, 720P, 960H, D1, CIF, QCIF, VGA |
| Audio | 1ch audio & 1ch Mic in, 1ch audio out |
| Recording | |
| Recording Mode | Manual, Schedule(Regular(Continuous), MD(Motion detection), Sensor Alarm), Stop |
| Alarm Recording | Motion detection, External alarm |
| Backup Mode | Network download / USB HDD |
| Display | |
| Video Output | 1ch VGA + 1ch HDMI sync video output |
| Multi-screen Display | All screens: 1/4/6/9/13/16/20/25/33/36/40/49/64 |
| Privacy Masking | Four customized zones for privacy masking for each area |
| Hard Disk | |
| Hard Disk | 4 SATAII, 4TB for each; Independent HDD rack, support hot swap |
| Network | |
| Interface | 2 RJ-45 ports(1000M) |
| Interface | |
| USB | 6 USB ports(2 front USB 2.0; 2 rear USB 2.0 and 2 rear USB 3.0) |
| General | |
| Power Supply | 100V-127V AC, 4A; or 200-240V AC, 2A; 47-63Hz |
| Power Consumption | |
| Working Environment | Temperature: 0°C~60°C; Humidity: 10%~80% ( non-condensation) |
| Dimension | 270mmx280mmx330mm (WxDxH) |
| Weight | 4Kg |
