Data Sheet

Code du produit:

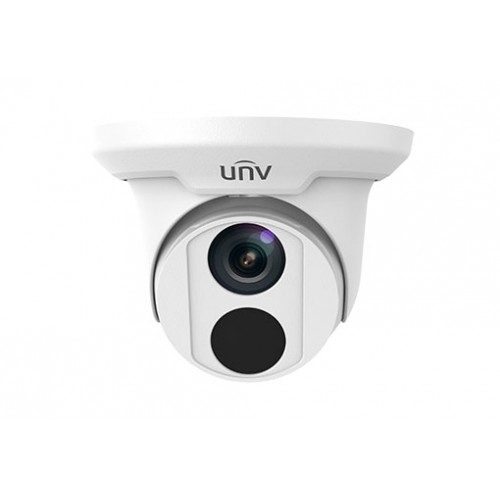

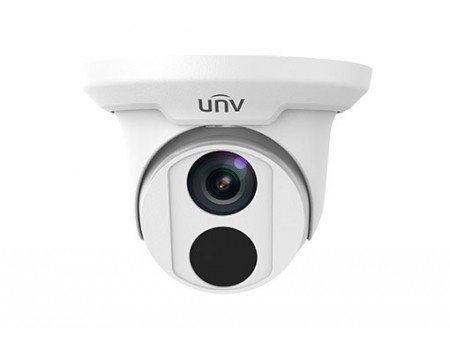

IPC3618SR3-DPF40

Résumé:

4K/8MP, 3840x2160, @20fps, Ultra265, 120dB WDR, Motion Detection, IR, up to 30m (98ft), IP67, 4mm Lens, Fixed, DC12V

  • Optics

    * Day/night functionality

    * Smart IR , up to 30m (98ft) IR distance

    * Optical glass window with higher light transmittance

    * IR anti-reflection window to increase the infrared transmittance

    * 2D/3D DNR (Digital Noise Reduction)

    * Up to 120dB WDR (Wide Dynamic Range

    Compression

    * Ultra 265, H.264, MJPEG

    * Triple streams

    * 9:16 corridor format

    Network

    * ONVIF Conformance

    Structure

    * Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

    * Wide voltage range of ±25%

    * IP67

    * 3-Axis

 IPC3618SR3-DPF28IPC3618SR3-DPF40
Camera
Sensor1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens2.8mm@F2.04.0mm@F2.0
Angle of view (H)118.1°91.6°
Angle of view (V)64.0°47.2°
Angle of view (O)153.5°112.7°
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.850.420.210.15.0
4.07228.814.47.2
Adjustment RangePan: 0° ~ 360°Tilt: 0° ~ 90°Rotation: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.05Lux (F2.0, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 8MP (3840*2160), Max 20fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible IntegrationONVIF (Profile S, Profile T), API
Interface
Network10M/100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (Ø x H)?126 x 94mm (Ø5.0” x 3.7”)
Weight0.45kg (0.99lb)
Operating Conditions-30? ~ 60? (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Ingress ProtectionIP67
