Data Sheet

Code du produit:

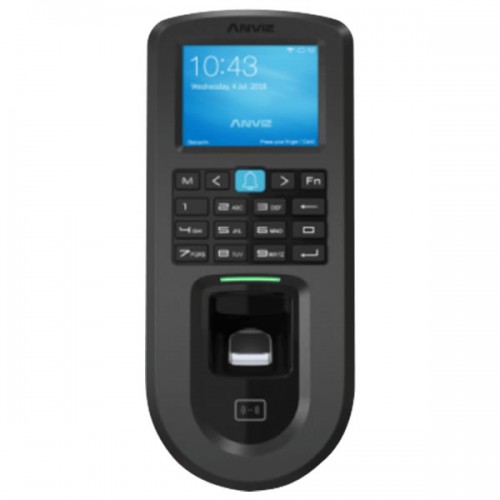

GX-VF30-Pro-MIF

Résumé:

1 GHZ Linux Based High Speed CPU, Stable and reliable, Color TFT-LCD Screen 3000 Fingerprints, 50000 Records, Touch Active fingerprint Sensor, Backlight Keypad, Door Open Sensor, RS485, USB Device, TCP/IP, Wiegand In/Out, Direct Lock Control, Group, Time Zone, Scheduled Bell, Doorbell & Relay Out, Tamper Alarm FP, Card, ID+FP,ID+PW, PW+Card, FP+Card. FP+PW Standard EM Card or Mifare Card, Wifi

High Speed Fingerprint Matching

  • VF30 Pro offers a massive memory capacity to manage largest number of users. A single unit of VF30 Pro can accommodate up to 3,000 users, 3,000 cards and 100,000 logs.

Versatile Interfaces

  • VF30 Pro comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485,Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices.

Freedom Infinite

  • VF30 Pro supports WiFi mode by optional, to provide users with lower installation cost, simpler configration and lower maintenance cost.

Capacity
Fingerprint Capacity3,000
Card Capacity3,000
Log Capacity100,000
Inferface
CommTCP/IP, RS485, POE (Standard IEEE802.3af), Optional WiFi
RelayRelay Output (COM, NO, NC )
I/ODoor Sensor, Exit Button, Door Bell,Wiegand in/out, Anti-pass Back
Feature
Identification ModeFinger, Password, Card
Identification Speed<0.5s
Card Reading Distance1~5cm ( 125KHz),  13.56MHz <2CM )
for Standard CR80 Card
Image DisplaySupport
Time Attendance Mode8
Group, Time Zone16 Droup, 32 Time Zone
Work Code6 Digit
Short Message50
WebServerSupport
Daylight SavingSupport
Voice PromptSupport
Clock Bell30 Groups
SoftwareAnviz CrossChex
Hardware
CPU1GHz Quick CPU
SensorTouch Active Sensor
Scanning Area22*18mm
RFID CardStandard EM, Optional Mifare
Display2.4" TFT LCD
Dimensions(W * H * D)80 * 180 * 40mm
Working Temperature-30?~ 60?
Humidity20% to 90%
PoEStandard IEEE802.3af
PowerDC12V 1A
IP GradeIP55
