GX-MZ-HD34-3 | 4x Zoom, Rugged HD IP Camera
GX-MZ-HD34-3 | 4x Zoom, Rugged HD IP Camera
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

GX-MZ-HD34-3

Résumé:

1080p resolution, 4x motorized zoom lens, Day/Night switching for almost any lighting condition, Integrated IR Illuminators, PoE, Stainless steel enclosure for harsh environments

Connectez-vous pour le prix

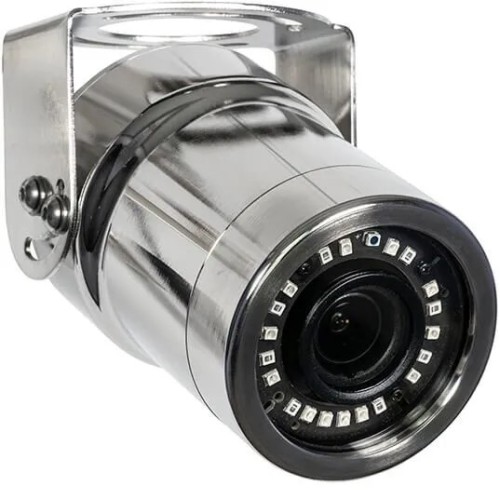

The GX-MZ-HD34-3 is a high-quality, high-resolution color video camera with a motorized zoom lens and auto-iris. It will produce high-definition video in low light conditions. The camera includes integrated IR LEDs for operation at 0 lux up to 40 meters.
This high resolution camera supports multiple streams and resolutions in H.264 codec. The zoom lens is remotely adjustable from 2.8 to 12 mm, to provide a horizontal field-of-view of over 90 degrees.

The camera is housed in a stainless-steel enclosure rated IP68. It comes ready for mounting and requires only a powered Ethernet network connection.

Imager 1/2.8” IMX335 CMOS
Resolution 1080p
Shutter 1/25s ~ 1/100000s
Minimum Illumination 0.001 Lux at F1.2
Color 0 Lux (IR on) to 40m
Exposure Auto
White Balance Auto, Indoor, Outdoor
Iris Auto
Focus Auto
Zoom Ratio 4x Optical Zoom
View Angle 30° - 100°
Focal Length 2.8 – 12 mm
Network 10/100 BASE-T (RJ-45)
Frame Rate 30 FPS at 1080p
Compression H.264
Protocols TCP/IP
Weight 4 lbs
Voltage Required IEEE 802.3af compliant PoE, 12 VDC
Power Consumption < 10 W
Operating Temperature -30°C - 60°C
Dimensions Ø3.35” (85mm) x 5.00” (127mm)
Mount Wall Wall Mount Standard
Protection Class IP68
