Galaxy CV Series NDAA 8MP/4K
Galaxy CV Series NDAA 8MP/4K
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

GX-CV728P-AI-DL-28A

Résumé:

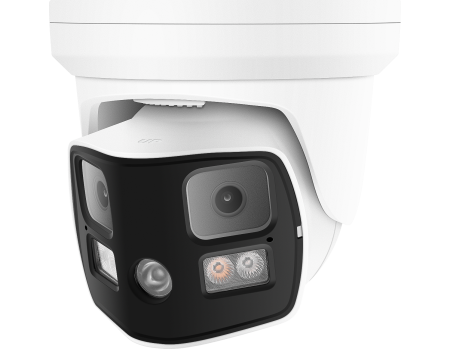

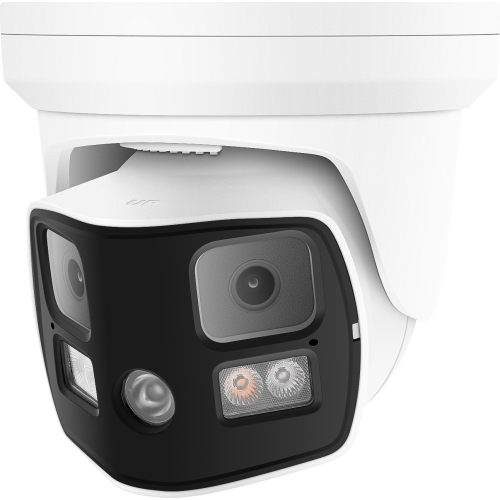

Galaxy CV Series NDAA 8MP/4K Panoramic Dual Lens Dual Light AI POE IPC with Two Way Audio / 2x 4MP Dual Cameras / D-WDR / AI Human & Vehicle Detection / H.265+ / Build in Mic and Speaker / 30 Meters IR Distance / 2x 2.8mm lens / SD Card slot support up to 512GB / Optional Junction Box: GX-CV-BK99X / Wall Mount: GX-CV-BK99D / AI Plug and Play compatible with CV and UNV NVRs / Hikvision Hilook NVRs only support onvi

Connectez-vous pour le prix
  • 1/2.7" CMOS sensor
  • 8MP wide-view resolution 4096 x 1944P (19:9)
  • 180 °wide-angle
  • Low illumination 0.01Lux
  • Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, ? D-WDR, Mirror , Defogging
  • Multiply Style OSD Overlay, Motion Detection, Privacy Mask
  • RTSP and Onvif 17.06 compatible with many third-party NVR
  • H.264/H.265 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Support user authentication, video data encryption
  • Support Alarm Snapshot to Email and FTP
  • Multiply WEB browser IE,Firefox 32bit ESR, Edge,Google Chrome,PC Client, Mobile APP remote access
  • RJ45 100mbps network port, IEEE802.3af PoE
  • Lightning protection 4000V
  • Strong water-proof housing, IP66
  • 2pcs Warm light + 3pcs IR Array leds, IR/White light distance:25-30M,
  • Three light Modes:
  • Mode 1: Smart Dual Light
  • Mode 2: Pure Infrared Light
  • Mode 3: Pure White Light
  • 2*F1.6 2.8 mm fixed lens
  • Built-in Mic and speaker two-way audio
  • With SD card slot ,support UP to 512GB SD card
  • With reset button
Camera
Image Sensor 1/2.7" GC5623 CMOS x2
Effective Pixels 8 megapixels
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.01Lux@F1.2(AGC ON)
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
BLC /HLC Support
DNR 2D/3D DNR
Other Human body and Vehicle detection ,AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay
Encode
Video Standard H.264/H.265/H.265+
Video Resolution MainStream:20fps@4096x1944P
Sub stream: 20fps@1024x480
Video Bitrates 512Kbps - 8Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a/AAC
Built-in Mic Yes
Built-in Speaker Yes,Two-way audio
Smart Detection Human body and Vehicle Detection
Led and distance
Led 2pcs warm-light Led + 3pcs IR Array Led
IR Distance 20-30 M
White light Distance 20-30 M
Lens
Focal length 2*F1.6 2.8 mm fixed lens
FOV 180°
Other FunctionS
With SD card slot ,support UP to 512GB SD card,with reset button
Network Services
Protocol HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
P2P Yes
Web IE , Firefox,Edge, Google Chrome etc.
Media CMS, Android, IOS
ONVIF 17.06 compatible
General
Network Port 1-RJ45, 100Mbps, POE optional
Power Supply 12 VDC ± 10%
Power Consumption < 10 W
Operating Temp. -30C-(+60)C, 10%-90%RH
