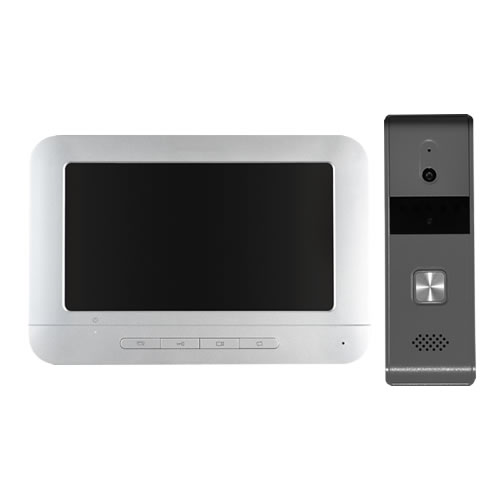

7 inch 4-wire Analog Video Intercom System
Data Sheet
Product Code:
Product Code:
VDP-KIS203
Summary:Waterproof Door Station, Self-adaptive IR supplement, One-touch calling, Pinhole camera with 720 x 576 @ 25 fps, Unlock controlling, Hands-free video intercom communication, Supports monitoring the door station and the external analog camera, Remote unlocking, Convenient installation and easy operation
- Door Station
- Self-adaptive IR supplement
- One-touch calling
- Pinhole camera with 720 x 576 @ 25 fps
- Unlock controlling - Indoor Station
- Hands-free video intercom communication
- Supports monitoring the door station and the external analog camera
- Remote unlocking
- Convenient installation and easy operation
| Door Station | |
| Video Parameters | |
| Camera: | 1/4" CMOS |
| Resolution: | 720 × 576 |
| Video frame rate: | PAL: 25 fps |
| Audio Parameters | |
| Audio Input: | Built-in Omnidirectional Microphone |
| Audio Output: | Built-in Loudspeaker |
| Audio Quality: | Noise Suppression and Echo Cancellation |
| Light Supplement | |
| Light Supplement Mode: | Photosensitive IR Supplement, IR Range: 2 Meters |
| Device Interfaces | |
| I/O Output: | 1 Relay Output |
| Four-wire Interface: | 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding) |
| General | |
| Material: | Zinc Alloy |
| Power Consumption: | Max. 5W |
| Working Temperature: | -30°C to 70°C (-22°F to 158°F) |
| Working Humidity: | 10% to 90% |
| Dimensions(L × W × H): | 145 mm × 49.2 mm × 26.45 mm (5.7" × 1.9" × 1.0") |
| Indoor Station | |
| Display Parameters | |
| Display Screen: | 7-Inch Colorful TFT LCD |
| Display Resolution: | 800 × 480 |
| Operation Method: | Physical Button |
| Audio Parameters | |
| Audio Input: | Built-in Omnidirectional Microphone |
| Audio Output: | Built-in Loudspeaker |
| Audio Quality: | Noise Suppression and Echo Cancellation |
| Device Interfaces | |
| Four-wire Interface: | 4 Four-Wire Interfaces (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding in 1 Four-Wire Interface) |
| General | |
| Power Supply: | 12 VDC |
| Power Consumption: | ?5 W |
| Working Temperature: | -10° C to + 55° C (14° F to 131° F) |
| Working Humidity: | 10% to 90% |
| Dimensions(L × W × H): | 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7") |
