Data Sheet

Product Code:

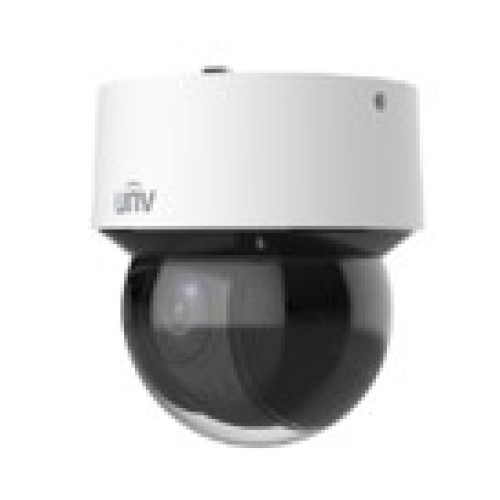

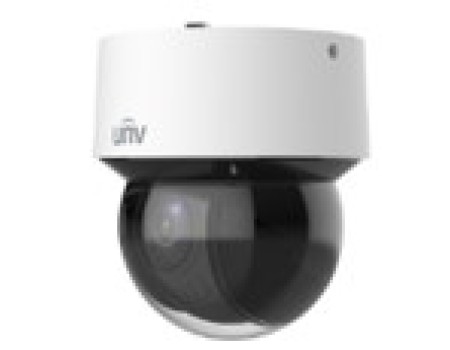

4MP, 2688x1520, @30fps, Ultra265, 120dB WDR, Motion Detection, IR, up to 100m (328ft), Audio, Alarm, MicroSD slot, IP66, IK10, 5.5-88mm, 16X, Manual VF, DC24V, Recommended mounts (TR-UF45-F-IN with TR-WE45-A-IN)

  • High quality image with 4MP,1/2.9" CMOS sensor
  • 2688*1520@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • Dual streams
  • 16X optical zoom
  • LightHunter technology ensures ultra high image quality in low illumination environment
  • Smart IR, up to 100m (328ft) IR distance
  • DC12V±10% or PoE+ (IEEE 802.3at)
  • Alarm 2 in and 1 out, audio 1 in and 1 out
  • IP66 ingress protection
  • IK10 vandal resistant
Camera Description
Resolution 4MP
Sensor 1/2.9''CMOS
Min. Illumination Colour: 0.005 Lux (F1.78, AGC ON)
0 Lux with IR
Day/Night IR?cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens Description
Lens type 5.5~88mm
Optical Zoom 16X
Iris F1.78?F3.73
Field of View (H) 50.85°~3.47°
Field of View (V) 29.94°~1.95°
Field of View (D) 62.55°~4.09°
DORI Description
DORI Distance?Detect? 127.6m~2048.4m(418.6ft~6720.5ft)
DORI Distance?Observe? 51.0m~819.4m(167.4ft~2688.2ft)
DORI Distance?Recognize? 25.5m~409.7m(83.7ft~1344.1ft)
DORI Distance?Identify? 12.8m~204.8m(41.9ft~672.0ft)
Illuminator Description
Illumination Distance(IR) Up to 100m (328 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video Description
Video Compression Ultra 265; H.265; H.264; MJPEG
Video stream Dual streams
Frame Rate Main Stream: 4MP(2688*1520),Max 30fps
Sub Stream: 720P(1280*720), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Support
OSD Up to 4 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
Image Description
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°
HLC Support
BLC Support
Defog Digital Defog
Intelligent Description
Smart intrusion prevention Support false alarm filtering: Cross line detection, Intrusion detection
Auto-Tracking Support, target filtering: vehicle, humanbody
Events Description
Basic Detection Motion detection; Tampering alarm; Audio detection
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; Alarm input
Audio Description
Audio Compression G.711U; G.711A
Audio Bitrate 128 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 16KHZ
Storage Description
Edge Storage Micro SD?up to 256 GB
Network Storage ANR; NAS(NFS)
Network Description
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
Client EZStation;  EZLive; EZView
Web Browser Plug?in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan/Tilt Description
Pan Range 360°(endless)
Pan Speed 0.1°/s~240°/s
Tilt Range –5°~90°(auto flip)
Tilt Speed 0.1°/s~120°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Home Position Support
Interface Description
Audio I/O 1/1
Alarm I/O 2/1
Serial Port 1*RS485
Network 1*RJ45 10M/100M Base?TX Ethernet
Certification Description
EMC CE?EMC (EN 55032: 2015+A11:2020+A1?2020,EN IEC 61000?3?2: 2019+A1: 2021,EN 61000?3?3: 2013+A1: 2019+A2:2021,EN 50130?4: 2011+A1:2014)
FCC (FCC CFR 47 part15 B, ANSI C63.4?2014)
Safety CE LVD (EN 62368?1:2014+A11:2017)
UL (UL 62368?1, 2nd Ed., Issue Date: 2014?12?01)
Environment CE?RoHS (2011/65/EU;(EU)2015/863)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General Description
Power DC12V(±10%,3A), PoE+(IEEE 802.3at)
Power Consumption Max 23W
Power Interface Ø 5.5mm coaxial power plug
Dimensions Ø 167 x 181mm(Ø 6.6” x 7.1”)
Weight 2.3Kg(5.07lb)
Working Environment ?40?~65? (?40°F~149°F), Humidity: ?95% RH (non?condensing)
Storage Environment ?40?~70? (?40°F~158°F), Humidity: ?95% RH (non?condensing)
Surge protection 6KV
Reset button Support
