Data Sheet

Product Code:

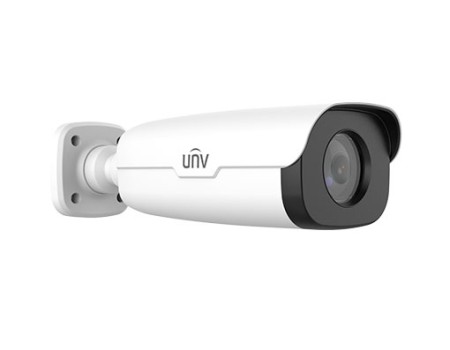

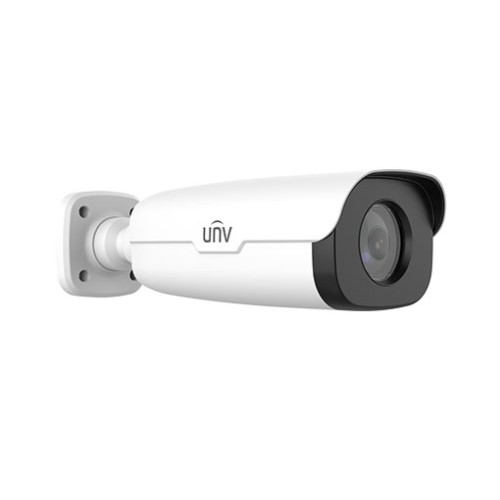

IPC254EB-DX22GK-I0

Summary:

4MP, 2688x1520, @30fps, Ultra265, 120dB WDR, Motion Detection, People Counting, Intrusion Prevention, Tripwire, IR, up to 150m (492ft), Audio, Alarm, MicroSD slot, IP67, 22X, Motorized VF, AC24V

  • High quality image with 4MP,1/1.8’’ CMOS sensor
  • 2688*1520@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams offer more choices for different clients in an integrated solution
  • 22X optical zoom allows for closer viewing of subjects
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Built-in heater, support normal start-up at low temperature
  • Support optical interface & network interface serial connection, reduce the cost of wiring
Camera
Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
Min. Illumination Colour:0.001 lux (F1.5, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >52dB
Lens
Lens type 6.5~143mm@F1.5, AF automatic focusing and motorized zoom lens
Iris DC-iris
Field of View (H) 3.49°~60.47°
Field of View (V) 1.97°~36.30°
Field of View (D) 4.12°~74.38°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
6.5 97.5(319.9ft) 39.0(128.0ft) 19.5(64.0ft) 9.8(32.0ft)
143 2145.0(7037.4ft) 858.0(2815.0ft) 429.0(1407.5ft) 214.5(703.7ft)
Illuminator
IR Range Up to 150m (492.1 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker N/A
Built-in Heater Support
WIFI N/A
Network 1 * RJ45 10M/100M/1000M Base-TX Ethernet + 1 * 100M/1000M SFP
Video Output 1 BNC
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power AC24V(±25%), PoE(IEEE 802.3at)
Power consumption: Max 15.0W
Power Interface Wires with cold-pressed terminal
Dimensions (L x W x H) 395 x 137 x 112mm (15.6“ x 5.4“ x 4.4”)
Weight 3.7kg(8.16lb)
Working Environment -40C~60C(-40°F ~ 140°F),Humidity: </=95% RH (non-condensing)
Storage Environment -40C~70C(-40°F ~ 158°F),Humidity: </=95% RH (non-condensing)
Surge protection 6KV
Reset button Support
