Data Sheet

Product Code:

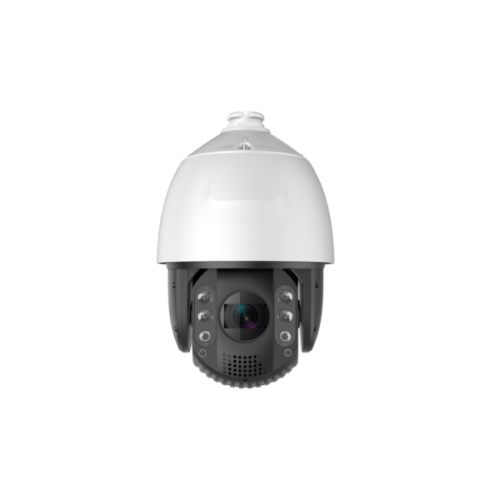

NP322-IR/32X

Summary:

2MP, 1920x1080, @25fps, H.265+, 120dB WDR, Motion Detection, Face Detection, Intrusion Prevention, Tripwire, IR, up to 150m (492ft), Audio, Alarm, MicroSD slot, IP66, 4.8-120mm Lens, 32X, Manual VF, AC24V, Including wall mount bracket and 60W PoE Injector

  • 1/2.8" progressive scan CMOS
  • Up to 1920 × 1080@60fps resolution
  • Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0LuxwithIR
  • 25× optical zoom, 16× digital zoom
  • WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
  • Up to 150 m IR distance
  • 24 VAC & Hi?PoE
  • Support H.265+/H.265 video compression


NP322-IR/32X

Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR
Day/Night IR Cut Filter
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain Control Auto/Manual
Privacy Masking 24 programmable privacy masks
Focal Length 4.8 mm to 120 mm, 32× optical zoom
Focus Control Auto/Semi-automatic/Manual
Angle of View Horizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
Video Bit Rate 32 Kbps to 16384 Kbps
Audio Interface 1-ch audio input and 1-ch audio output
Max. User Access Up to 32 users 3 levels: Administrator, Operator and User
Power Supply 24 VAC and Hi-PoE Max.: 40 W (Max. 14 W for IR)
Ingress Protection IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions  220 mm × 353.4 mm ( 8.66" × 13.91")
Weight Approx. 4.5 kg (9.92 lb)
Material ADC 12, PC, PC+10%GF
Operating Temperature -30°C to 65°C (-22°F to 149°F)
Operating Humidity </= 90%
Network Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Network Interface 1 RJ45 10 M/100 M Ethernet, Hi-PoE
Max. Resolution 1920 × 1080
Wide Dynamic Range 120 dB WDR
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Alarm Trigger Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
H.264 Type Baseline Profile/Main Profile/High Profile
Audio Bit Rate G.711alaw/G.711ulaw: 64 Kbps G.722.1/G.726: 16 Kbps MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
Alarm Interface 2-ch alarm input and 1-ch alarm output
Zoom speed Approx. 3.6 s (optical lens, wide-tele)
Min. working distance 10 mm to 1500 mm (wide-tele)
Aperture range F1.6 to F3.5
Preset Speed Configurable, from 0.1°/s to 160°/s, Preset speed: 240°/s Configurable, from 0.1°/s to 120°/s Preset Speed: 200°/s
Preset 300
IR Distance 150 m
Proportional zoom Support
Patrol 8 patrols, up to 32 presets for each patrol
Park action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Power-off memory Support
PTZ position display Support
Preset freezing Support
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Digital Zoom 16×
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Pattern 4 pattern scans, record time over 10 minutes for each scan
Smart IR Support
Smart detection Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection
Auto Tracking Support
Shutter Time 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
Pan/Tilt Range (PTZ) 360° endless/From -15° to 90° (auto-flip)
H.264+ Support
H.265 Type Baseline Profile/Main Profile/High Profile
H.265+ Support
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Client CMS, Guarding Vision
SVC Support
Basic Event Detection Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
API Open-ended, support ONVIF, ISAPI, support SDK and Third-Party Management Platform
Simultaneous Live View Up to 20 channels
3D Positioning Support
