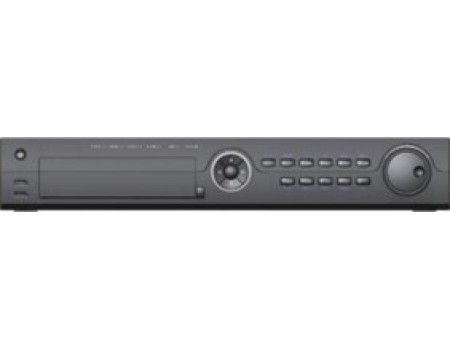

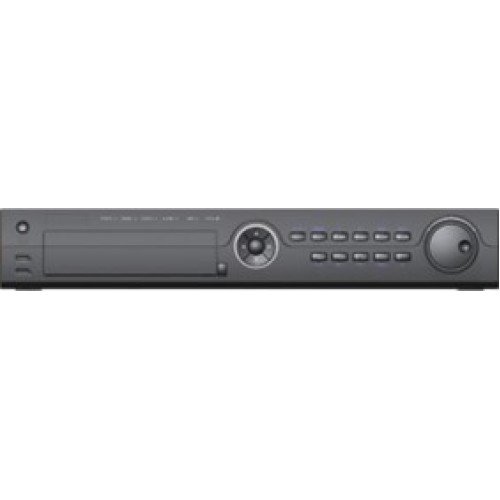

Data Sheet

Product Code:

NR520-16

Summary:

16CH, 32MP, 256Mbps, H.265+, 2x HDMI, 1x VGA, 1x RJ45 10/100/1000M Alarm 16in/9out, 4x SATA up to 16TB/ea, 2x USB2.0, 1x USB 3.0

Key Feature

  • 265+/H.265/H.264+/H.264 video formats
  • Up to 16-ch IP camera inputs
  • Up to 20-ch@4 MP decoding capacity
  • Up to 256 Mbps incoming bandwidth

Professional and Reliability

  • H.265+ compression effectively reduces the storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service
  • Support double verification for playback and downloading
  • Solar-powered camera is connectable through OTAP protocol. NVR would get stream when user requests, and camera would send back videos according to the schedule

HD Video Output

  • Provide independent HDMI and VGA outputs
  • HDMI video output at up to 8K resolution
  • Dual 4K HDMI output resolution

Storage and Playback

  • Up to 4 SATA interfaces for HDD connection
  • 16-ch synchronous playback

Smart & POS Function

  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
  • POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

  • 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
  • Guarding Vision & DDNS (Dynamic Domain Name System) for easy network management
  • Smooth streaming technology
  • Support web access without plug-in

Specification

Video and Audio





IP Video Input

16-ch

Up to 32 MP resolution

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

256 Mbps

Outgoing Bandwidth

256 Mbps





HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×

1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×

720/60Hz, 1024 × 768/60Hz



HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×

1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz



VGA Output

1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×

768/60Hz

Video Output Mode

HDMI1/VGA simultaneous output, HDMI2/VGA independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 K Ohm)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 K Ohm, using the audio input)

Decoding

Decoding Format

H.265+/H.265/H.264+/H.264





Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/

2CIF/CIF/QCIF

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Synchronous Playback

16-ch



Decoding Capability

2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30

fps)/40-ch@1080p (30 fps)

Dual-Stream Recording

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

Remote Connection

128



Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,

UPnP™, HTTP, HTTPS

Network Interface

2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

RAID

RAID Type

N/A

Auxiliary Interface

eSATA

1 eSATA interface

SATA

4 SATA interfaces

Capacity

Up to 16 TB capacity for each disk

Serial Interface

2 RS-485 (half-duplex), 1 RS-232

Alarm In/Out

16/9

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0





Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

General

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

</= 15 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Chassis

19-inch rack-mounted 1.5U chassis

Dimension (W × D × H)

445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")

Weight

</= 5 kg (without HDD, 11 lb.)
