Data Sheet

Product Code:

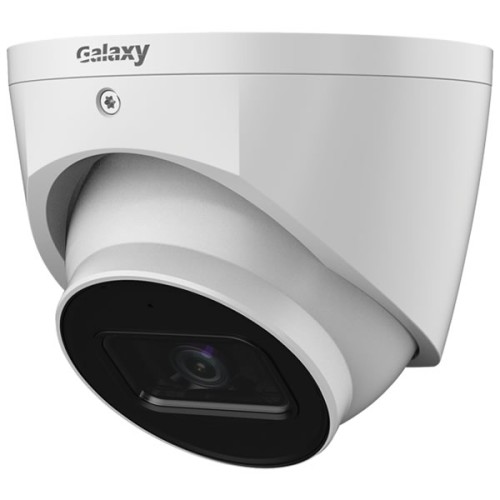

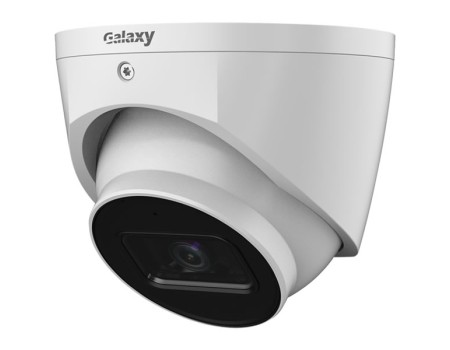

GX-HT728DL-M-AI-AP-28

Summary:

Build in Mic, 50 Meter IR Distance, H.265+, WDR, Alarm/Audio, 512GB Micro SD Support, IP67, 2.8mm Lens, EPTZ, Heat Map, Functions: AI-Powered Image, Perimeter Protection, Face Detection, Smart Sound Detection, People Counting, Video Metadata, Deep light, Support - 40 Degree, 3.9" x 4.8", 1.1lb, Optional: GX-HT-BK-JB80X, GX-HT-BK-WM04D


  • 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition
  • Outputs max. 8 MP (3840×2160) @25/30fps.
  • Built-in IR LED, and the illumination distance is 50 m.
  • ROI, SVC, SMART 264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring
  • With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting,
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports 512 GB Micro SD card, built-in MIC.
  • 12 VDC/PoE power supply;
  • IP67
  • SMD 3.0.

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s



Min. Illumination

0.0008 lux@F1.6 (Color, 30 IRE)

0.0004 lux@F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

50 m (164.04 ft) (IR)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (IR LED)



Angle Adjustment

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8mm; 3.6mm; 6mm

Max. Aperture

F1.6





Field of View



2.8 mm: H: 111°; V: 59°; D: 131°

3.6 mm: H: 87°; V: 47°; D: 102°

6 mm: H: 55°; V: 30°; D: 64°

Iris Control

Fixed





Close Focus Distance



2.8 mm: 1.8 m

3.6 mm: 2.6 m 6 mm: 4.4 m









DORI

Distance

Lens

Detect

Observe

Recognize

Identify



2.8 mm

85.4 m

(280.18 ft)

34.2 m

(112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)



3.6 mm

106.0 m

(347.77 ft)

42.4 m

(131.11 ft)

21.2 m (69.55 ft)

10.6 m

(34.78 ft)



6 mm

164.8 m

(540.68 ft)

65.9 m

(216.21 ft)

33.0 m (108.27 ft)

16.5 m

(54.13 ft)

Intelligence

EPTZ

Yes





IVS (Perimeter Protection)



Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection

of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD 3.0

Less false alarm, longer detection distance

AI SSA

Yes







Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement;

face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.





People Counting

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes











Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.

Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.

Non-motor vehicle attributes: type, color, number of

people, top type and color, hat.

Human body attributes: gender, top/bottom type and

color, bag, hat and umbrella.

Face attributes: gender, age, expressions, glasses, face

mask and beard.



Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video



Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported

by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264







Video Frame Rate

Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps)

Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams





Resolution

3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944;

2688 × 1520; 2560 × 1440; 2048 × 1535; 2304 × 1296;

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280

× 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF

(352 × 288/352 × 240)

Bit Rate Control

CBR/VBR



Video Bit Rate

H.264: 32 kbps–16384 kbps H.265: 12 kbps–13568 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)



Yes



White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto





Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes



Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688 ×

1520) resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm









Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes



Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI;

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS



Browser

IE: IE 9 and later

Chrome: Chrome 102 and later

Firefox: Firefox 88 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS;Android





Cyber Security

Configuration encryption; trusted execution;Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification





Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)



Alarm Input

1 channel in: wet contact, 5mA 3V–5V DC

Alarm Output

1 channel out: wet contact, 300mA 12V DC

Power

Power Supply

12 VDC/PoE (802.3af)/ePoE



Power Consumption

Basic: 4.1 W (12 VDC); 5.2 W (PoE);

Max. (H.265+ WDR+ Intelligence on+IR on): 6.8 W (12 VDC); 8.8 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

</=95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67

Structure



Casing Material

Inner core: Metal Cover: Metal Decoration ring: Plastic

Quick install mounting plate: Metal

Product Dimensions

99.1 mm × ?121.9 mm (3.90" × ?4.80")

Net Weight

500 g (1.10 lb)

Gross Weight

770 g (1.70 lb)
