Data Sheet

Product Code:

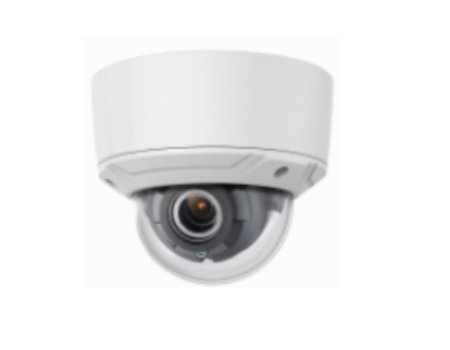

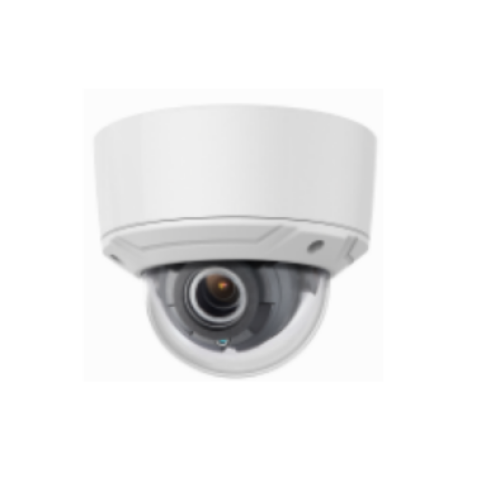

NC328G2-VDZ

Summary:

8MP, 3840x2160@20fps, H.265+, 120dB WDR, Day & Night, 0.005 Lux@F1.6, Face Detection, Intrusion, Tripwire, Human/Vehicle, IR up to 40m (131ft), Audio, Alarm, MicroSD slot, 2.8-12mm Motorized Lens, DC12V, PoE, IP67, IK10, Optional: DS-1271ZJ-155, DS-1273ZJ-155

  • High quality imaging with 8 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to

35°

Lens Mount

Ø14

Iris Type

Fixed

Aperture

F1.6

DORI

DORI

2.8 to 12 mm: D: 97 m to 290 m, O: 38 m to 115 m, R: 19 m to 58 m, I: 9 m to 29 m

Illuminator

Supplement Light Type

IR

Smart Supplement Light

Yes

IR Wavelength

850 nm

IR Range

Up to 40 m

Video

Max. Resolution

3840 × 2160





Main Stream

50 Hz: 20 fps (3840 × 2160)

25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)



Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.





Video Compression

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64

Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Network



Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket,

WebSockets

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

User/Host

Up to 32 users. 3 user levels: administrator, operator and user



Security

Password protection, complicated password, HTTPS encryption, IP address filter,

Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

Guarding Vision, Hik-Central



Web Browser

Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white

balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

SNR

>/= 52 dB

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support micro SD card, up to 256 GB





Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input

impedance: 4.7 K Ohm, interface type: non-equilibrium;

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output

impedance: 100 Ohm, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Hardware Reset

Yes

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm,

exception

Face Detection

Yes

Deep Learning Function

Perimeter Protection

Line crossing detection, intrusion detection

Supports human and vehicle targets classification

General

Linkage Method

Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger

capture, send email

Camera Material

Upper cover and base: metal

Bubble: plastic

Camera Dimension

Ø153.3 mm × 111.6 mm (Ø6.1" × 4.4")

Package Dimension

244 mm × 174 mm × 173 mm (9.7" × 6.9" × 6.9")

Camera Weight

Approx. 855 g (1.9 lb.)

With Package Weight

Approx. 1469 g (3.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating

Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)





Web Client Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via email, pixel counter

Firmware Version

V5.5.113

Software Reset

Yes

Power Consumption and Current

12 VDC, 0.88 A, max. 10.5 W

PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W

Power Supply

12 VDC ± 25%, reverse polarity protection

PoE: 802.3af, Class 3

Power Interface

Ø5.5 mm coaxial power plug

Approval

Protection

IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
