Data Sheet

Product Code:

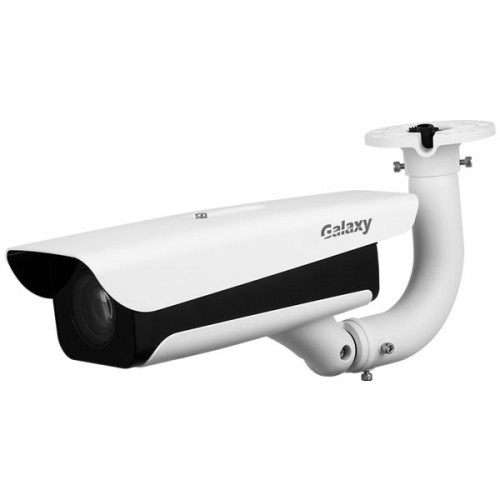

GX-HT614-VBA50-LPR

Summary:

1/1.8'' CMOS, H.265, 96DB WDR, 6 IR Brightness Adjustable, Micro SD Slot, Alarm 3in/3out, Audio 1in/1out, IP67, IK10, 10-50mm Long Range Motorized Lens, DC12V/PoE

  • CMOS image sensor
  • Video compression standards: H.265/H.264M/H.264H/H.264B/MJPEG
  • Integrated design, IP67
Basic
Illuminator Number 6 IR illuminators, brightness adjustable
Image Sensor 1/1.8'' CMOS
Image Resolution 2688 x 1520 (OSD black strip excluded)
Video Resolution Main stream: 4M (2688 x 1520), 1080p (1920 x 1080), 720p (1280 x 720)
Sub stream: 720p (1280 x 720), D1 (704 x 576, 704 x 480), CIF (352 x 288, 352 x 240)
Video Frame Rate PAL: Main stream (2688 x 1520@25 fps, 1920 x 1080@25 fps, 1280 x 720@25 fps), sub stream: (1280 x 720@25 fps, 704 x 576@25fps, 352 x 288@25 fps)
NTSC: Main stream (2688 x 1520@30 fps, 1920 x 1080, 1280 x 720@30 fps), sub stream (1280 x 720@30 fps, 704 x 408@30 fps, 352 x 240@30 fps)
Bit Rate H.264B: 32 Kbps–32768 Kbps
H.264M: 32 Kbps–32768 Kbps
H.264H: 32 Kbps–32768 Kbps
H.265: 32 Kbps–32768 Kbps
MJPEG: 512 Kbps–65536 Kbps
Video Compression H.264B/H.264M/H.264H/H.265/MJPEG
Picture Encoding Format JPEG
Noise Reduction 3D NR
White Balance Full auto, auto color temperature range, customized color temperature
Electronic Shutter Speed 1/50–1/10,000 auto or manual
WDR 96 db
Edge Enhancement Yes
Exposure Mode Full auto, customized auto, customized
Iris Control Auto iris (W:1.33—T:1.34)
Performance
Trigger Mode Video detection; I/O coil
Shutter Single shutter
Storage 1 built-in TF card slot. Supports Kingston 16 G, 32 G, 64 G, and 128 G; Dahua 16 G, 32 G, 64 G, and 128 G; SanDisk 16 G, 32 G, 64 G, and 128 G
Image Tampering Prevention Yes. Video/picture can be checked through watermark and verification
Field of View H: 40.55deg. (W)–9.33deg. (T)
V: 22.7deg. (W)–5.3deg. (T)
D: 46.6deg. (W)–10.63deg. (T)
Illumination Distance 30 m (98.43 ft)
Capture Distance 8 m–30 m (26.25 ft to 98.42 ft)
Detected Width 6 m–7 m (19.69 ft to 22.97 ft)
Min. Illumination 0.002 lx (built-in illuminator on)
Max. Detection Speed 60 km/h (37.28 miles per hour)
Alarm Event Alarm for events of no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access
Security Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
OSD Overlay Supports overlay of time, address, plate, vehicle (color, type, accuracy), vehicle posture, counterfeit, checkpoint direction, trigger source, and custom
Automatic Network Replenishment (ANR) Yes. Transfer through platform/FTP
Auto Registration Yes
Intelligence
Vehicle Detection Vehicle capture rate >/= 99%
Vehicle Recognition Supports recognizing vehicle type, vehicle color, features of driver and front-seat passenger, licensed/unlicensed vehicle. Vehicle recognition rate >/= 95%
Video Metadata Yes
Intelligent Track Frame Intelligent frame display. Supports displaying vehicle plate and vehicle path
Port
Lens Mount Lens in the camera module
Analog Output 1
Network 1 x 100/1000 M Ethernet port (RJ-45)
RS-485 2
RS-232 1
Alarm Input 3, optocoupler input (on-off input)
Alarm Output 3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers
Audio Input 1-channel RCA port
Audio Output 1-channel RCA port
General
Power Supply 12V DC, 24V AC, PoE+
Power Consumption < 20 W
Operating Temperature ?30deg.C to +65deg.C (?22deg.F to +149 deg.F)
Operating Humidity 10%RH–90%RH (no condensation)
Casing Metal + plastic
Protection Grade IP67
Dimensions 515.2 mm x 124.7 mm x 183.2 mm (20.28" x 4.91" x 7.21") (L x W x H)
Net Weight 1.9 kg (4.19 lb)
Gross Weight 3.8 kg (8.38 lb)
Installation Bent pole bracket (included)
Lens Standard 10 mm–50 mm (0.39''–1.97'')
Certification
CE, FCC Yes
RoHS Yes
