GX-KCM-RQE70
GX-KCM-RQE70
   0 reviews  |  Write a review
Data Sheet

Product Code:

GX-KCM-RQE70

Summary:

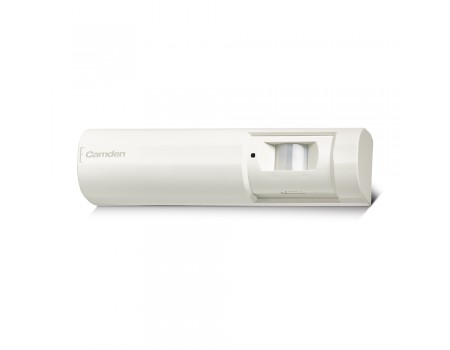

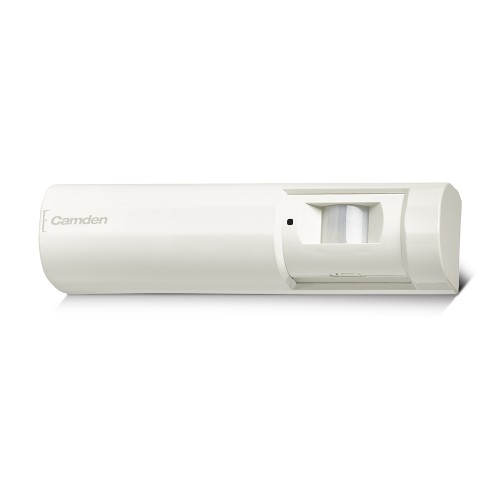

Camden CM-RQE70 PIR Request to Exit Detector

Login for price

• COMPACT SIZE, DESIGNED TO MOUNT ON DOOR FRAMES

• EASY TO USE ON-BOARD PROGRAMMING BUTTONS. NO DIP SWITCHES

• (4) FACTORY DEFAULT OPERATING MODES, WITH THE ABILITY TO CUSTOMIZE MODE ATTRIBUTES

• SELECTABLE FAIL SAFE/FAIL SECURE

• (2) FORM ‘C’ CONTACTS

• MOMENTARY AND LATCHING RELAY MODES

• SECONDARY ACTIVATION DEVICE INPUT

• CARD/KEYPAD INPUT

• DOOR POSITION SWITCH INPUT

• REQUEST TO EXIT INPUT

• BUILT-IN SOUNDER (ADJUSTABLE)

• TAMPER SWITCH

Voltage
12 /24V DC Operation
Current Draw
50Ma (Max)
Relays
(2) Form 'C' (DPDT)
Contact Rating
3A @ 30V DC
Programming
On-board push buttons and status LED
Modes
(4) Factory Default
(1) Fully Custom
Selectable Fail Safe/Fail Secure
Coverage
Max. 10' W × 10' H
Horizontal and Vertical Adjustment (Mechanical)
Sensor Sensitivity/Range (Electronic)
Time Delay
Adjustable, 5, 15, 30, 45 & 60 second
Sounder
ON/OFF, with Adjustable Volume
Piezo Buzzer
92db.@ 10cm
Indicator
Activation LED
Card or Keypad Input
(1) N/O
Door Position Switch Input
(1) N/O
Request to Exit Input
(1) N/O
Tamper Switch Contact Rating
50Ma 12V DC
Temp Operating Range
32°F-120°F (0-50°C)
Humidity Range
0- 93% Non-Condensing
Dimensions
7"L × 1 3/4"D × 1 3/4"H
(176mm × 43mm × 43mm)
Weight
0.25 Lbs. (0.12KG.)
Colors
White or Black Models
