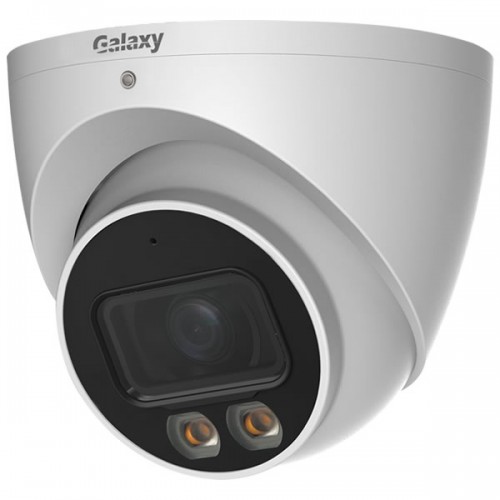

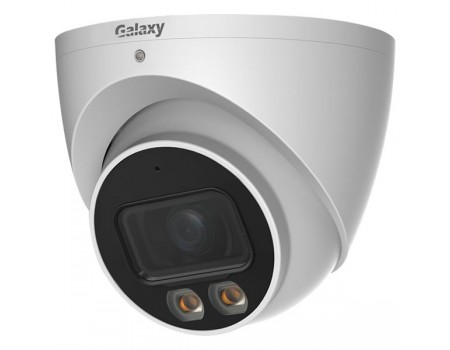

Galaxy Hunter 4MP Full Color Starlight Warm Light AI Turret IP Camera
Galaxy Hunter 4MP Full Color Starlight Warm Light AI Turret IP Camera
   0 reviews  |  Write a review
Data Sheet

Product Code:

GX-HT724-AI-LED-28CF

Summary:

Galaxy Hunter 4MP Full Color Starlight Warm Light AI Turret IP Camera / H.265 / True WDR / 17 Meter IR Distance / SD Card Support / Audio / IP67 / 2.8mm Lens / AI Functions: Face Recognition, ANPR, Metadata, People Counting, traffic data statistics JUNCTION BOX: GX-HT-BK-JB80X WALL MOUNT: GX-HT-BK-WM09D

Login for price


  • 1/1.8" 4Megapixel progressive scan CMOS
  • H.265 & H.264 triple-stream encoding
  • 25/30 fps@2688 × 1520, 50/60 fps@1080P (1920 × 1080)
  • WDR (140 dB), Day/Night (Electronic), 3D DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
  • 2.8 mm fixed lens
  • Built-in MIC, Max. LEDs Length 20 m
  • Micro SD memory, IP67


Camera
Image Sensor 1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels 2688 (H) ×1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.002 Lux@F1.6
IR Distance up to 20 m (66 ft)
IR On/Off Control Auto/Manual
LEDs 2
Lens
Lens Type Fixed focal
Mount Type Board-in
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°
Iris Type Fixed
Close Focus Distance 1.3 m (4.27 ft)
DORI Distance Detect: 58m(192ft), Observe: 23m(75ft), Recognize: 12m(39ft), Identify: 6m(20ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan: 0?–360?; Tilt: 0?–78?; Rotation: 0?–360?
Artificial Intelligence
Face Detection Support face image capture
Perimeter Protection Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering
People Counting Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly
General Intelligence Object Abandoned/Missing
Heat Map Yes
Video
Video Compression

H.265,H.264,H.264B,H.264H,MJPEG (sub stream)

Smart Codec Yes
Streaming Capability 3 Streams
Resolution 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame Rate Main Stream: 2688 × 1520 (1 fps–25/30 fps), 2560 × 1440 (1 fps–25/30 fps), 1920 × 1080 (1 fps–50/60 fps)
Sub Stream: D1 (1 fps–25/30 fps), D1 (1 fps–50/60 fps)
Third Stream: 1080P (1 fps–16 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night

Day/Night: Electronic, Auto/Color/B/W

BLC Mode BLC/HLC/WDR (140 dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off/On (4 Zone, Rectangle)
Region of Interest Off/On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Yes
Defog Yes
Flip 0°/90°/180°/270°
Mirror Off/On
Privacy Masking Off/On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, G.726, AAC, G.723
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP; FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP; NFS;PPPoE;802.1x;SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
Streaming Method Unicast/Multicast
Max. User Access 20 Users
Edge Storage

NAS;FTP;SFTP, Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)

Management Software Smart PSS, DSS, DMSS
Smart Phone iOS, Android
Interface
Audio Interface Built-in MIC
RS485 N/A
Alarm N/A
Electrical
Power Supply DC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption <7.2W
Environment
Operating Conditions -30° C to +60° C (-22° F to +140° F)/Less than 95% RH
Strorage Conditions -30° C to +60° C (-22° F to +140° F)
Ingress Protection IP67
Construction
Casing Metal
Dimensions ?106 mm × 99.2 mm (4.17” × 3.91”)
Net Weight 0.55 kg (1.21 lb)
Gross Weight 0.71 kg (1.57 lb)

Junction Box

GX-HT-BK-JB80X


Wall Mount

GX-HT-BK-WM09D
