Data Sheet

Product Code:

GX-VTO2000A-2

Summary:

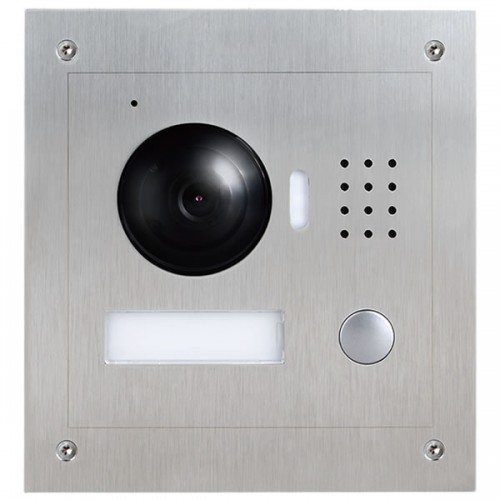

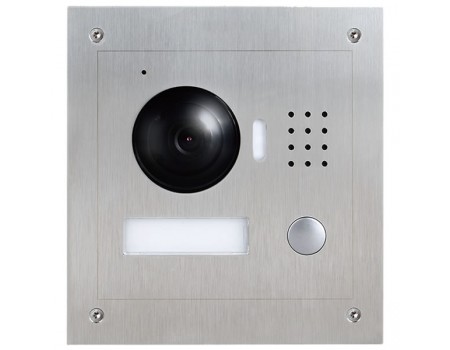

1.3MP camera,support wide angle lens and angle adjusting, Excellent night vision effect, Support unlock remotely, IP 54, IK07


  • HD CMOS camera
  • Stainless steel panel, IP54,IK07
  • Night vision &Voice indication
  • Video & Audio messaging
  • Remote intercom with mobile APP(VTNC3000A needed)
  • Surface mounted & Flush mounted


System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/3” 1.3MP CMOS

Lens

2.8mm

Angle of View

D:120° H:90°

Day/Night

Color Image

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Operation Mode

Keypad

Single Mechanical Button

Interface

Door Control

2(1 relay out for main lock, 1 extended by access control module)

Alarm In

2(1ch unlock button, 1ch feedback)

RS485

1

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Ingress Protection

IP54, IK07

Tamper Switch

1

Installation

Surface & Flush

Material

Stainless Steel

Power

DC 24V / Supply directly by VTNC3000A

Power Consumption

Standby ?1W, Work ?10W

Working Environments

?40°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

129.9mm×32.2mm×140mm

Weight

0.8Kg
