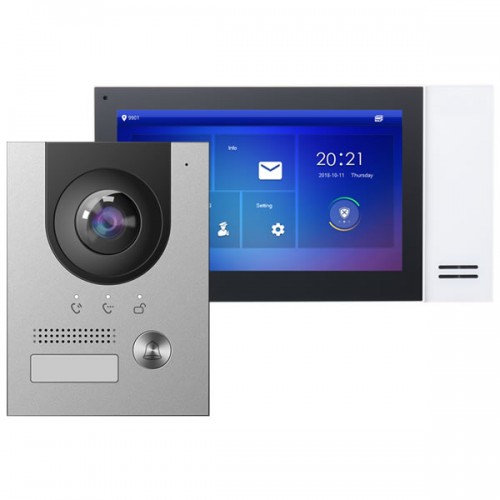

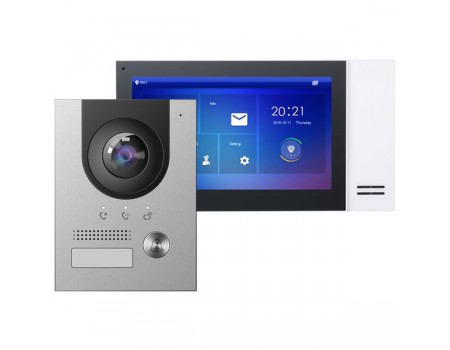

Galaxy Hunter Series IP Villa Kit
Galaxy Hunter Series IP Villa Kit
   0 reviews  |  Write a review
Data Sheet

Product Code:

GX-KTP01-S

Summary:

2MP camera, 160° angle of view, Aluminum alloy plate, IP55, IK07, Surface mounted, Support standard PoE

Login for price


IP Villa Door Station
  • 2MP CMOS camera
  • Mechanical button
  • Night vision & voice indicator
  • 160° angle of view
  • Group call
  • Aluminium alloy plate
  • IP55&IK07
  • Surface mounted
  • Support standard PoE
IP Indoor Monitor
  • IPC surveillance
  • Alarm integration
  • High performance
  • Embeded 8GB SD card
  • Support standard PoE


Technical Speci?cation
Model VTO2202F-P
System Parameter
Host Processor Embeded processor
Camera CMOS Low Illumination 2MP HD Colorful
Angle of View H:160°
Focal Length 2 mm
WDR Support
Noise Reduction Noise suppression and echo cancellation
Video Encoding H.264
Frame Rate PAL:25 fps NTSC:30 fps
Audio Encoding G.711 U
Video Bit Rate 256 K to 2 M
Light Compensation IR Supplement
Port
RS-485 Port 1
Alarm Output/Input 1/1
Lock Control 1 set
Door Status Detection 1 set
Eoc 1 set
Exit Button 1
Tamper Switch 1 set
Network Interface 1
Power Output 12V/100mA
Alarm Parameter
Tamper Alarm Support
Door Sensor Timeout Alarm Support
Alarm Iutput Support
Alarm Output Support
User Parameter
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Status Indicator Calling&Communication&Unlocked
Communication Methods Digital communication
Unlock Mode Remote unlocking
Auto Snapshot Support
Leave Videos or Text Messages Support
Storage Extended 64 G TF Card
WEB Configuration Support
Real-time Monitor Support
Normal Parameter
Housing Material Alumimum
Power Supply Mode POE or DC 12V
Installation Method Supports surface mounted
Dimensions 130 mm×96 mm×28.5 mm (5.1"×3.78"×1.1")
Working Temperature -30°C to +60°C (-22°F to +140°F)
Power Consumption ?12W
Total Weight 0.35kg/0.77lb
Technical Speci?cation
Model VTH2421FW-P
Main Processor High performace embedded processor
Operating System Embedded LINUX OS
Screen Type Capacitive screen
Display 7-inch TFT screen
Resolution 1024 × 600
Video Compression H.264
Audio Compression G.711A/G.711U/PCM
Audio Input 1 channel all-direction microphone
Audio Output Built-in 1.5W loudspeaker
Audio Mode Support dual-way bidirectional talk
Audio Enhancement Support echo cancellation/DNR
Audio Bit Rate 16 kbps
Communication Mode Full digital
Information Release Support to receive and view notifications issued by center
Leave Videos or Text Messages Support
DND Mode Support to set DND period
Sub-station Quantity 9
Alarm Input 6 channel (switch quantity)
Alarm Output 1 channel
Network 1 RJ-45
SOS Alarm Support
Casing PC+ABS
Appearance Color Appearance Color
Power Supply Power Supply
Installation Wall mount
Accessories Default bracket
Default alarm cable
Dimensions 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85")
Operating Temperature -10°C to +55°C (+14°F to +131°F)
Operating Humidity 10%RH-95%RH
Power Consumption Standby?4W, work?6W
Gross Weight 0.35 Kg (0.77 lb)
Power Supply Mode PoE or DC 12V
Storage Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G
