Data Sheet

Product Code:

GXPTZ968FSL-25X-AT

Summary:

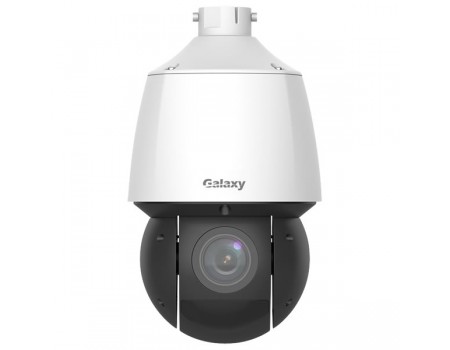

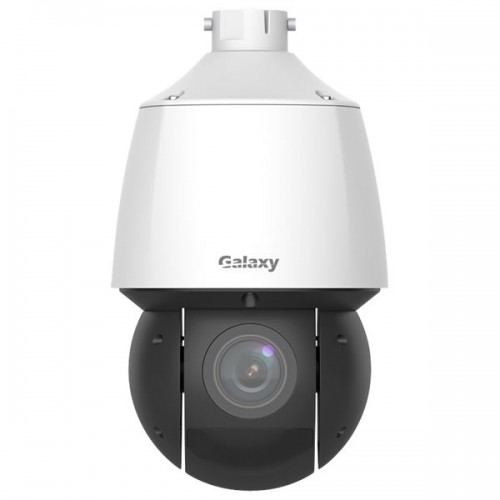

Galaxy Pro 4" 4MP 25x Starlight PTZ Dome Camera with SID trigger Auto Tracking / 1/2.8CMOS, Motorized zoom lens 4.8~120mm, 4MP(2688x1520) max 30fps, Ultra 265 DC12V & PoE, 120dB WDR, IP67, IK10, LED lgiht range up to 100Meters, Micro SD Card, Alarm & Audio, Starlight, 25X Optical Zoom, Smart Function / Support - 40 Degree / 2 Years Warranty / Wall Mount Optional: AE-TR-WE-45-A / PoE Injector Optional: POE-PTZ-60W

  • High quality image with 4MP,1/2.8" CMOS sensor
  • 2688x1520@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 25X Optical Zoom
  • Starlight technology ensures ultra-high image quality in low illumination environment
  • Smart IR, up to 100m (328ft) IR distance
  • DC 12V+/-25% or PoE+ (IEEE 802.3at)
  • Alarm 2 in and 1 out, Audio 1 in and 1 out
  • IP67 ingress protection
  • IK10 vandal resistant
Camera
Sensor 1/2.8", 4.0 megapixel, progressive scan, CMOS
Min. Illumination Colour: 0.003 Lux (F1.5, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 25
Iris Auto; F1.5 ~ F3.8
Angle of View (H) 52.20°~2.74°
Angle of View (V) 30.81°~1.54°
Angle of View (O) 64.20°~3.23°
DORI
DORI Distance Lens (4.8mm), Detect 119.3m(391.2ft), Observe 47.7m(156.5ft), Recognize 23.9m(78.2ft), Identify 11.9m(39.1ft)
Lens (120mm), Detect 4752.0m(8120.1ft), Observe 990.0m(3248.0ft), Recognize 495.0m(1624.0ft), Identify 247.5m(812.0ft)
Illuminator
IR Range Up to 100m (328 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP(2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Support
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Audio detection, Tampering Alarm
Auto Tracking Support
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Audio
Audio Compression G.711U,G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client Galaxy8000
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 200°/s
Preset speed: 240°/s
Tilt Range –15° ~ 90° (auto reverse)
Tilt Speed 0.1°/s ~ 120°/s
Preset speed: 200°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time   15s~1800s
Preset Image Freeze Support
Home Position Support
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC
Certification
Certification CE, FCC
General

Power
DC12V(+/-25%,3A), PoE+(IEEE 802.3at)
Power consumption: MAX 21W
Power Interface Dia. 5.5mm coaxial power plug
Dimensions (Dia. x H) Dia.166 x 295mm (Dia.6.5" x 11.6")
Weight 3.05kg(6.72lb)
Working Environment -40°C~70°C(-40°F ~ 158°F), Humidity: </=95% RH (non-condensing)
Storage Environment -40°C~70°C(-40°F ~ 158°F), Humidity: </=95% RH (non-condensing)
Surge Protection 6KV
Reset Button Support
Protection Ingression protection: IP67
Vandal resistant: IK10
