Data Sheet

Product Code:

TVI-D937-36

Summary:

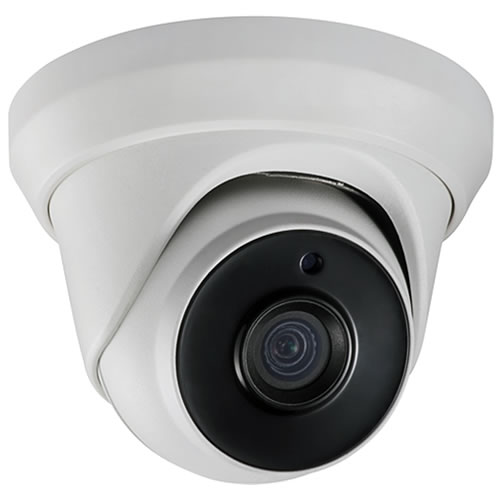

1/3" CMOS, 3.0MP, 1920X1536@15fps, Day/Night, ICR, IP66, 2 Matrix IR up to 131ft (40m), OSD, UTC, 3.6mm Fixed Lens, DC 12V

  • 3MP High Definition
  • 3.6mm Fixed Lens
  • 2 Matrix IR 2.0 up to 131ft (40m)
  • DC 12V
  • OSD Menu via UTC technology compatible with HD-TVI DVR
  • Must be Used with HD-TVI 3.0 DVRs
CAMERA
Image Sensor 1/3" CMOS
Signal System NTSC/PAL
Effective Pixels 2052(H)*1536(V)
Min. Illumination 0.01Lux, 0 Lux with IR
Lens 3.6mm; FoV: 67.8 deg.
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 1920x1536@18fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 62dB
MENU
AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
BLC Support
Function DNR, Mirror, SMART IR
GENERAL
Working Temperature
/Humidity
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 5W
Weather Proof Ratings IP66
IR Range Up to 131ft (40m)
Dimensions 3.6" x 3.3" x 2.7" (91.0 x 82.6 x 68.3mm)
Weight 0.8 lbs (350g)
