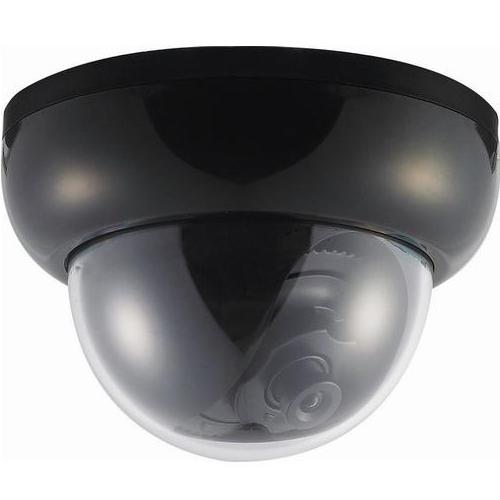

Galaxy 600TVL WDR Indoor Dome Camera

Model

SVD632

Resolution

600 TV Lines

Sensor

1/3 inch SONY DS CCD

Total Pixels

811(H) x 508(V) 410K pixels (NTSC)
795(H) x 595(V) 470K pixels (PAL)

Effective Pixels

768(H) x 494(V) 380K pixels (NTSC)
752(H) x 582(V) 440K pixels (PAL)

Scanning System

2:1 Interlace

Synchronization

Internal / Line Lock

Frequency

Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC)
Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL)

S/N (Y signal)

More than 50 dB (AGC off)

Video Output

CVBS : 1.0Vp-p / 75ohm

Min. Illumination

0.1 Lux at F1.2 (Color) / 0.0001 Lux (Sens-up x256)

White Balance

ATW / AWC / PUSH / MANUAL

Electronic shutter
Speed

Auto / Manual
(1/60 sec ~ 1/120,000 sec NTSC)
(1/50 sec ~ 1/120,000 sec PAL)
Sens-up and sens-up limit is selectable / Flickerless

Sens-Up

AUTO / OFF (selectable limit x2 ~ x256)

O.S.D

Built-in

Backlight Compensation

Low, Middle, High, HLM, Off Selectable

Gain Control

Low, Middle, High, Off Selectable

3DDNR (3D Digital Noise Reduction)

Low, Middle, High, Off Selectable

Day & Night

Auto, Color, B/W, CDS

SYNC

INTERNAL / AUTO

Motion Detection

ON / OFF

PRIVACY

ON / OFF (6 Zone)

WDR (Long and Short exposure)

ON / OFF

Digital Zoom

ON (x10) / OFF

MIRROR (H-REV)

MIRROR / V-FLIP / ROTATE / Off

Operating Temperature / Humidity

-10°C~ +50 °C/ 30%~ 80% RH
