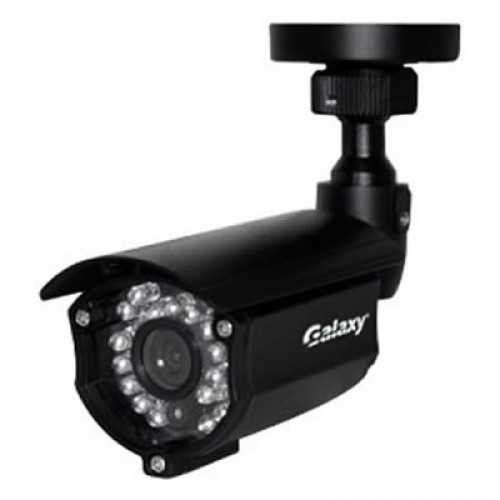

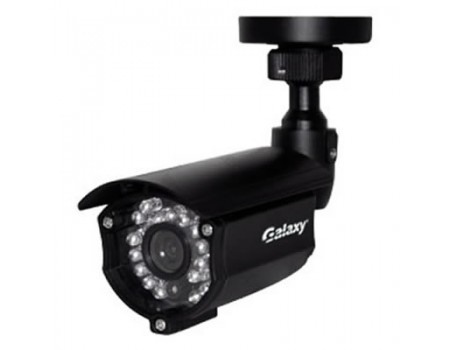

Galaxy 700TVL WDR IR Outdoor Bullet Camera
Sale
Data Sheet
Product Code:
Product Code:
SED-CAM-SVB67
Summary:1/3" SONY SUPER HAD CCD II, 700TVL, Upgraded Waterproof Housing (IP67), 0Lux at IR On, IR LED 25pcs, OSD Controlled, WDR, Smart IR, 3DDNR, Day & Night, Motion, Privacy, Easy Installation, Fixed Lens 3.6mm, DC12V
- Hero Chipset
- 1/3 INCH SONY SUPER HAD CCD II
- High Resolution / High Sensitivity (Sense up x1024)
- Upgraded Waterproof Housing (IP67 rating)
- 0Lux at IR On (IR LED 25pcs)
- OSD Controlled
- WDR (Wide Dynamic Range) / Smart IR
- 3DDNR / Day & Night
- Motion / Privacy / Easy Installation
- Fixed Lens 3.6mm
| Model | SED-CAM-SVB67 |
| Sensor | 1/3 INCH SONY SUPER HAD CCD II |
| Resolution | 700 TVL |
| Total Pixels | 811(H) x 508(V) 410K pixels (NTSC) 795(H) x 595(V) 470K pixels (PAL) |
| Effective Pixels | 768(H) x 494(V) 380K pixels (NTSC) 752(H) x 582(V) 440K pixels (PAL) |
| Scanning System | 2:1 Interlace |
| S/N (Y signal) | More than 50 dB (AGC off) |
| Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL) |
| Video Output | CVBS : 1.0Vp-p / 75ohm |
| Min. Illumination | 0 Lux at IR On |
| White Balance | ATW / PUSH / MANUAL Adjustable |
| Electronic Shutter Speed | AUTO / MANUAL (1/60 sec ~ 1/120,000 sec) (NTSC) AUTO / MANUAL (1/50 sec ~ 1/120,000 sec) (PAL) |
| WDR (Wide Dynamic Range) | ON / OFF |
| O.S.D | Bulit-In |
| Backlight Compensation | BLC / HLC / HBLC / OFF |
| AGC (Auto Gain Control) | LOW, MIDDLE, HIGH, OFF Selectable |
| 3DDNR (3D Digital Noise Reduction) | OFF, LOW, MIDDLE, HIGH, AUTO |
| Day & Night | AUTO (Day Night time Change), EXT, COLOR, B/W |
| Smart IR | ON / OFF |
| Privacy | OFF / ON (8 Zone) |
| Smart Motion Detection | OFF / ON (4 Zone) |
| Image Conversion | ON / OFF |
| LSC (Lens Shading Compensation) | ON / OFF |
| Sharpness | ADJUSTABLE |
| LANGUAGE | ENGLISH, SPANISH, PORTUGUESE, RUSSIAN, GERMAN, ITALIAN, NEDERLAND, KOREAN, CHINESE |
| Lens | Fixed Lens 3.6mm |
| Power | DC 12V |
| Operating Temperature / Humidity | -10°C ~ +40°C / 30% ~ 80% RH |
| Storage Temperature / Humidity | -20°C ~ +60°C / 20% ~ 90% RH |
Specifications & Features:
Galaxy Security is a leading manufacturer of Security Cameras Systems (CCTV) in North America. We offer technical support for all our products. We offer affordable Quality CCTV video surveillance systems, cameras and accessories for the professional installers and resellers.
