Data Sheet

Product Code:

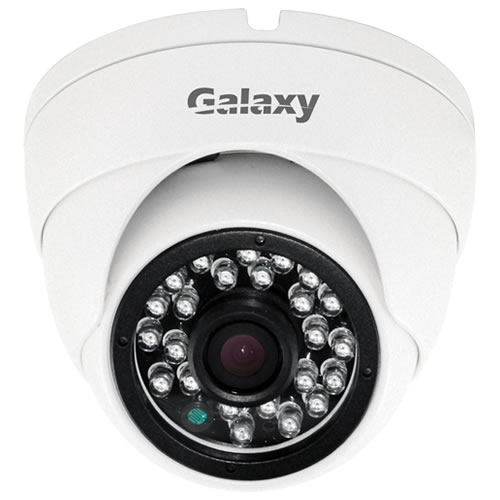

XHD970W-5MP

Summary:

5MP CMOS, AHD/HDCVI/HDTVI/CVBS, AHD/TVI: 20fps@2560X1936, CVI: 30fps@2560x1440, 0.02Lux@ (F1.2,ACG ON), 0Lux with IR, 24 pcs IR LEDs up to 65ft(20m) , Day & Night, (Auto)ICR/ Color/ B/W, 3.6mm Lens, DC12V

  • 5MP CMOS
  • AHD/HDCVI/HDTVI/CVBS
  • AHD/TVI: 20fps@2560X1936, CVI: 30fps@2560x1440
  • 0.02Lux@ (F1.2,ACG ON), 0Lux with IR
  • 24 pcs IR LEDs up to 65ft(20m)
  • Over 300m Transmission via 75-2 coaxial cable
  • Day & Night, (Auto)ICR/ Color/ B/W
  • 3.6mm Lens
  • DC12V



ModelXHD970W-5MP
Camera
Image Sensor5MP CMOS
Chipset5MP SENSOR+FH8538M
Effective Pixels2560(H) x 1936(V)
Lowest illumination0.02Lux@ (F1.2,ACG ON), 0Lux with IR
Electronic ShutterAuto, 1/50s~1/60,000s
Video SystemPAL/NTSC
Video Frame RateAHD/TVI: 20fps@2560X1936, CVI: 30fps@2560x1440, adjustable
Video Output1CH, HDCVI/HDTVI/AHD/CVBS
Video Switch2 bit switch
Smart IR ControlSupport
Day/NightAuto(ICR) / Color / B/W
OSD MenuSupport, coaxial cable control via DVR directly (UTC)
Other FunctionAWB, AGC
General
Power SupplyDC12V+/-10%
Power Consumption<8W
Working Environment-30 ~ +60°C / Less than 95%RH
IR LED24 pcs
IR Distance20 meters
IR Lens3.6 mm
Transmission DistanceOver 300m via 75-3 coaxial cable

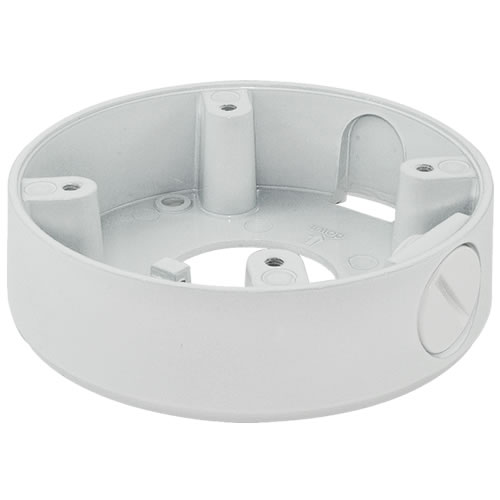

Junction Box

SED-ACC-SVD970W

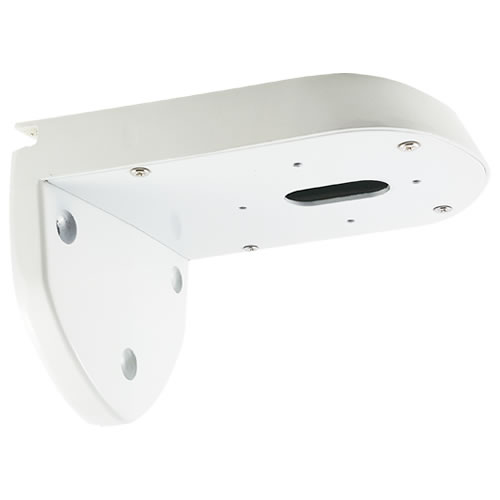

Wall Mount

SED-BK-B05W
