Data Sheet

Product Code:

GX-KP-100A

Summary:

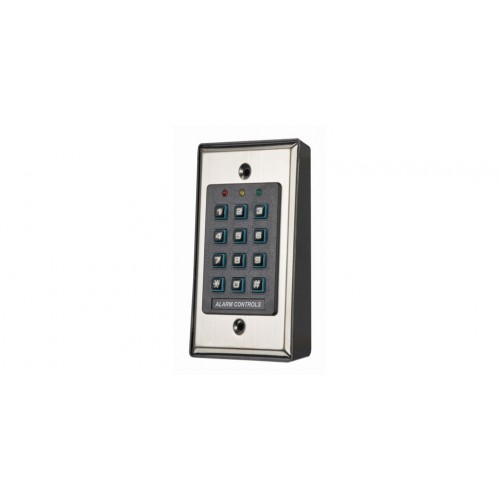

The KP-100A is a self-contained digital access control keypad that can be flush mounted on a single gang box or surface mounted on its plastic mounting box.

Standard Features

  • Single gang or flush mount stainless steel plate
  • 12-key illuminated 3x4 keypad
  • True 10-digit operation (10 digits plus * and # keys)
  • 1 - 1,000 user codes capability
  • 1 - 50 visitor codes for temporary workers and visitors
  • Easy programming from the keypad
  • Built-in tamper switch with N.C. dry contact
  • Passage mode and Lockout mode
  • Configurable audible keystroke echo tone
  • Red, green and yellow LEDs for status and programming feedback
  • Fail safe or fail secure capable
  • Easy to install with simple hand tools
  • 5A SPDT timed, control relay (1) output
  • Request to exit (REX) input
  • For indoor applications only
  • 3 year warranty

Accessories

  • Comes standard with surface mount back box

Specifications

Dimensions

  • Keypad: 2-3/4”W X 4-1/2”H X 5/32”D
  • Surface mount back box: 2-13/16”W X 4-5/8”H X 1-7/16”D

Electrical

  • Operating Voltage
    • 12-24V AC/DC [+/- 10%]
  • Operating Current
    • 12VDC: 40mA at rest; 100mA active
    • 24VDC: 70mA at rest; 50mA active
  • Output Relay – (1) Form C dry contacts
    • 5A/30 VDC Max – Fail Safe or Fail Secure
  • REX Input – N.O. dry contact
    • 1mA/5VDC Max
  • Tamper Switch – N.C. dry contact
    • 50mA/24VDC Max

Environmental

  • Operating Temperature
    • -4°F to +158°F [-20°C to +70°C]
  • Humidity
    • 5-95% relative humidity non-condensing
  • Indoor use only

 Shipping Weight

  • 0.5lb [0.23kg]
