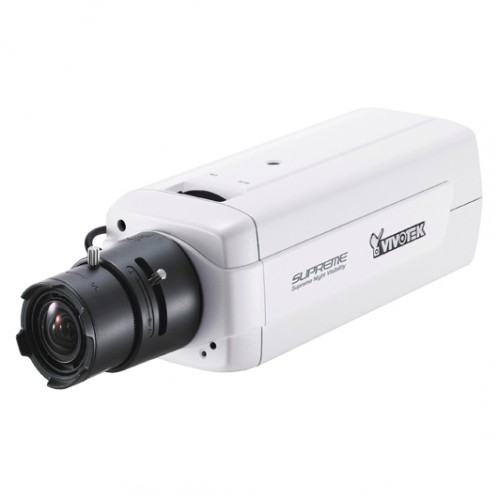

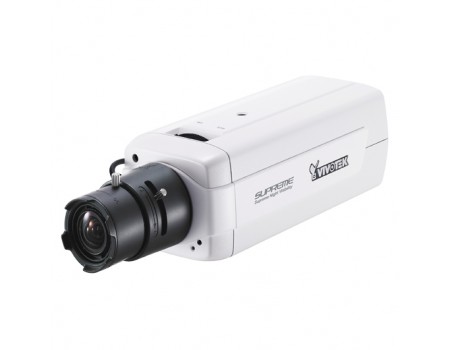

Data Sheet

Product Code:

IP8151

Summary:

Indoor, Day & Night, 1280x1024 (1.3MP), Triple (H.264/MPEG-4/MJPEG), 1/3" CMOS, 2-Way Audio,PoE, SD Card Slot, ONVIF, Auto-Iris Vari-focal 3.1~8mm Lens

Lens f=3.1 ~ 8 mm
F 1.2
auto iris
CS-mount
vari-focal
Removable IR-cut filter for day & night function
Angle of View 35.2deg. ~ 86.7deg. (horizontal)
26.5deg. ~ 64.4deg. (vertical)
43.9deg. ~ 110.3deg. (diagonal)
Shutter Time 1/5 ~ 1/40,000 sec
Image sensor 1/3" CMOS in 1280x1024 Resolution
Minimum Illumination 0.04 Lux / F1.2 ( typical )
Supreme Night Visibility: y
0.001 Lux / F1.2 ( B/W )
Video Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1280x1024
MPEG-4: Up to 30 fps at 1280x1024
MJPEG: Up to 30 fps at 1280x1024

BNC connector for video output
NTSC/PAL video output switch
Image Settings Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
AGC AWB AES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR enhanced
Audio Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, ??-Law or A-Law
Interface:
Built-in microphone
External microphone input
Audio output
External/Internal microphone switch
Supports two-way audio
Supports audio mute
Networking 10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage SD/SDHC card slot
Stores snapshots and video clips
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users 10 clients on-line monitoring at the same time
Dimensions Depth: 154mm
Width: 72mm
Height: 62mm
Weight Net: 664 g
LED Indicator System power and status indicator
System activity and network link indicator
Power 12V DC
24V AC
Power consumption: Max. 3.6 W
Approvals CEC-TickFCCLVDVCCI
Operating Environments Temperature: -10°C ~ 50°C (14 ~ 122 F )
Humidity: 90%
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance RS-485 interface for scanners, pan/tilts
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 36 months

Datasheet:

Depth: 154mm
Width: 72mm
Height: 62mm
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1280x1024
MPEG-4: Up to 30 fps at 1280x1024
MJPEG: Up to 30 fps at 1280x1024

BNC connector for video output
NTSC/PAL video output switch
