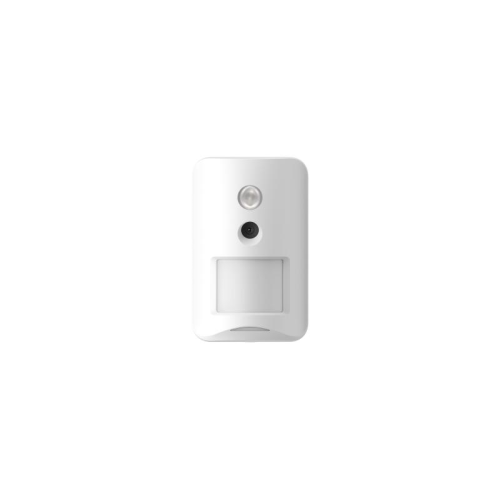

HIKVISION Wireless PIR-Camera Detector

Detection Performance

Detection Method

Passive Infrared

Detection Range

10m

Detection Angle

90°

Detection Zones

78

Detectable Speed

0.3?2m/s

Sensitivity

Auto,High,Low

Pet Immunity

24Kg

Feature

Digital Processing

Support

Sealed Optics

Support

Tamper Protection

Rear

Environment Temperature

Indicator

Support

Signal Strength Indicator

Support

Video

Field Angle

90°(H), 70°(V)

Image Type

JPEG

Resolusion

320*240,160*120

Interface

Power Switch

Power Up / Enrolling

LED Indicator

Blue(Alarm)

Transmission

Transmission Technology

Tri-X Wireless

Transmission Frequency

915MHz

Transmission Security

AES-128 Encryption

Transmission Range(Free Space)

1Km

Enrolling Method

Power up,Remote ID,QR Code

Electrical Characteristics

Standard Battery Life

Up to 2 years (standby time)

Power Supply

Battery Powered

Battery Type

AA Alkaline Battery × 4

Typical Voltage

3V

General

Operation Temperature

-10 C to 55 C (14 F to 131 F)

Storage Temperature

-20 C to 60 C (-4 F to 140 F)

Operation Humidity

10% to 90%

Dimension(WxHxD)

65.6mm × 104mm × 50.7mm

Weight

120g

Mounting Height

2.0m - 2.4m

Mounting Method

Wall

Application Scenario

Indoor

Bracket

Optional Wall Accessory
