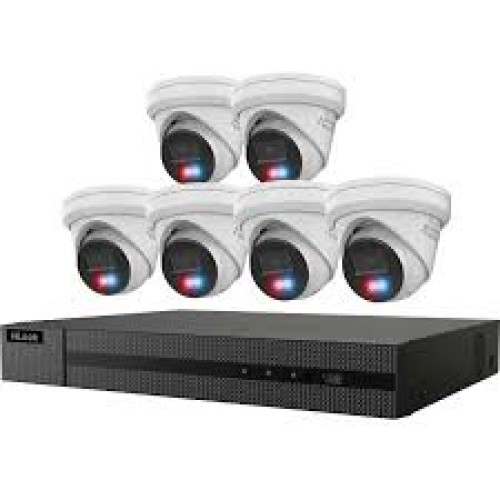

HIKVISION 8CH 8MP kit

Camera

Camera

Camera Case Type

Turret

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Protection Level

IP67

Material

Camera body: metal, bottom base : plastic

Wi-Fi Support

No

Lens

Focal Length

2.8 mm

Aperture

F2.0

Focus

Fixed

FOV

horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

Lens Mount

M12

IR Range

Up to 30 m

Video

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile, Main Profile, High Profile

H.264+

No

H.265 Type

Main Profile

H.265+

No

Video Bit Rate

32 Kbps to 16 Mbps

Max. Resolution

3840 × 2160

Main Stream

50 Hz:

12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Image Setting

H.264 Type

Day/Night Switch

Day, Night, Auto, Schedule

Network

Alarm Trigger

Motion detection, video tampering alarm, illegal login

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS,

FTP, SMTP

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Client

iVMS-4200, HiLookVision

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

N/A

Video Out

No

Reset Button

No

General

Power Supply

12 VDC ± 25%,  5.5 mm coaxial plug power, or PoE (802.3af, class 3)

Consumption

12 VDC, 0.3 A, Max: 3.5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W

Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working Humidity

95% or less (non-condensing)

Dimension (W × D × H)

Ø 110 mm × 93.2 mm (4.3" × 3.7")

Weight

Approx. 360 g (0.8 lb)

NVR

Video and Audio

IP Video Input

8-ch

Incoming/Outgoing Bandwidth

80 Mbps/80 Mbps

HDMI Output

1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x

1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (Linear, 1 K ohm)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k ohm)

Decoding

Decoding Format

H.265+,H.265,H.264+,H.264

Video Resolution

8MP/6MP/5MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

8-ch

Capability

1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

Network

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,

UPnP™, HTTP, HTTPS

Remote Connection

32

PoE

Interface

8-ch

Power

</= 80 W

Standard

IEEE 802.3 af/at

Auxiliary interface

SATA

2

Capacity

Up to 8 TB capacity for each disk

USB Interface

2 × USB 2.0

Alarm In/Out

No

General

Power Supply

48 VDC, 2.5 A

Consumption (without HDD and

PoE off)

</= 15 W (without HDD and PoE off)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight (without hard disk)

</= 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Kit

Certification

CE, IC

Weight (with package)

</= 7.5 kg (16.5 lb)
