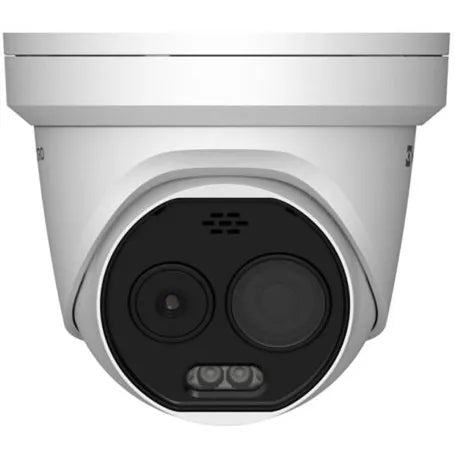

Hikvision Thermal Camera HM-TD1228-7/G1/T3A
Hikvision Thermal Camera HM-TD1228-7/G1/T3A
Model: HM-TD1228-7/G1/T3A
Regular price
$862.00
Sale price
$862.00
Regular price
Available in stock
Open here
Couldn't load pickup availability
- Case Type: Bi-spectrum Turrect
- Resolution: 256 × 192
| Model | HM-TD1228-7/G1/T3A |
|---|---|
| Product Category | Thermal Products |
| Product Type | Security thermal cameras |
| Product Series | HeatPro Series |
| Offering | HeatPro Turret Series |
| Thermal Module | |
| Sensor | Uncooled vanadium-oxide focal plane array |
| Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8–14 μm |
| NETD | ≤25 mK at 25 °C, F1.0 |
| Thermal Focal Length | 6.9 mm |
| Instantaneous Field of View (IFOV) | 1.74 mrad |
| Thermal Field of View | 24.9° × 18.7° (H × V) |
| Minimum Focusing Distance | 1.3 m |
| Thermal Aperture | F1.0 |
| Digital Zoom | 2× and 4× |
| Optical Module | |
| Sensor | 1/2.7-inch Progressive Scan CMOS |
| Resolution | 5 MP, 2688 × 1944 |
| Min. Illumination | 0.0089 Lux @ F1.6 (AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Optical Focal Length | 8 mm |
| Optical Field of View | 39.4° × 21.96° (H × V) |
| Optical Aperture | F1.6 |
| WDR | 120 dB |
| Illuminator | |
| IR Distance | Up to 60 m |
| White Light Range | Up to 60 m |
| Image Fusion | |
| Bi-Spectrum Image Fusion | Optical image details overlaid on thermal channel |
| Picture in Picture | Thermal image region displayed over optical picture |
| Target Coloration | White-hot and black-hot modes |
| Illumination & Alarm | |
| Light Supplement | Smart hybrid IR and white light |
| Visual Alarm | White flashing light; adjustable frequency |
| Audio Alarm | Audible alarms for VCA and temperature exceptions; two presets plus six user-importable alerts |
| Smart Functions | |
| Video Content Analysis | Line crossing, intrusion, region entrance, region exiting; up to 8 rules |
| Temperature Measurement | Point, area and line measurements; up to 21 rules |
| Temperature Measurement Range | -20 °C to 150 °C |
| Temperature Measurement Accuracy | ±8 °C |
| Fire Detection | Dynamic fire detection (up to 10 fire points) |
| Video | |
| Thermal Main Stream | 25 fps at 1280×720, 704×576, 640×512, 320×240 |
| Optical Main Stream | 25 fps (50 Hz) or 30 fps (60 Hz) at up to 2688×1944 |
| Video Compression | Main H.265/H.264; sub H.265/H.264/MJPEG |
| Audio Compression | G.722.1, G.711 ulaw/alaw, MP2L2, G.726, PCM |
| Color Palettes | 17 colour palettes including white-hot, black-hot, rainbow and ironbow |
| Network | |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Network Storage | microSD/SDHC/SDXC to 512 GB; NAS NFS/SMB/CIFS; ANR |
| API | ISAPI, Hikvision SDK, ISUP, ONVIF Profiles S/G/T/M, OTAP |
| Simultaneous Live View | Up to 20 channels |
| Users | Up to 32; admin, operator, user |
| Clients | iVMS-4200, Hik-Connect |
