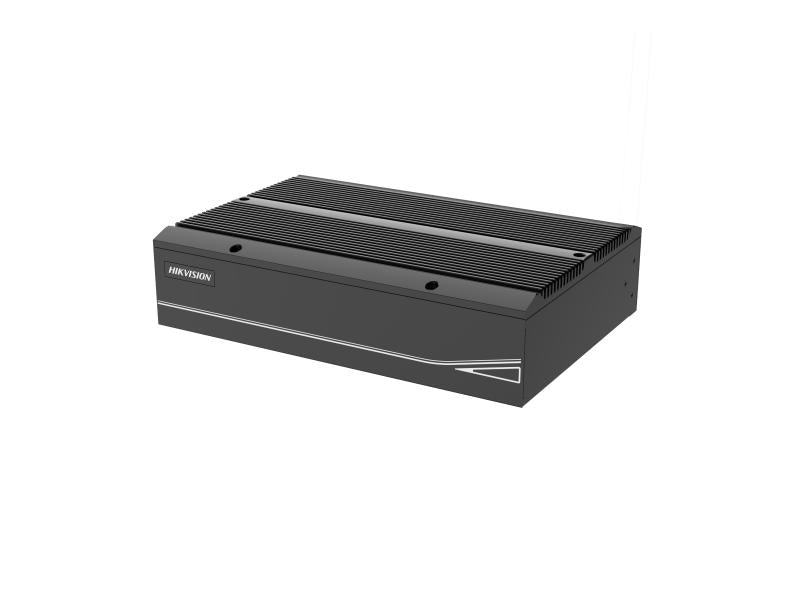

Hikvision Parking Management Device DS-TPE304-S
Hikvision Parking Management Device DS-TPE304-S
Model: DS-TPE304-S
Regular price
$2,017.00
Sale price
$2,017.00
Regular price
Available in stock
Open here
- Cascade management: One can manage up to 4 lanes, and up to 5 devices can be cascaded
- Strong adaptability: fully closed structure, no fan heat dissipation design, can be used at -10~50° working temperature
- Multi network interface design: 8 network interfaces on the internal network support the access of a large number of network devices and saving switch costs; 2 gigabit network port on the external network support network fault tolerance and dual network IP setting, dual network isolation and other applications
- Remote access: Supports Internet remote access to devices, remote troubleshooting, remote log download, and remote device upgrade
- Local display control: Support VGA/HDMI display, standard mouse and keyboard input control, plug and play, convenient and fast
- Standard SDK interface: The standard SDK protocol supports interconnecting with cloud platforms and has strong external scalability
- Huge pictures storage: 4T 3.5" HDD and 128GB SSD
- Multi other interface: 2 RS-232, 1 RS-485, 2 alarm in, 2 alarm out, 4 USB, 1 audio in, 1 audio out
- Built-in Parking Management System software
Couldn't load pickup availability
- Cascade management: One can manage up to 4 lanes, and up to 5 devices can be cascaded
- Strong adaptability: fully closed structure, no fan heat dissipation design, can be used at -10~50° working temperature
- Multi network interface design: 8 network interfaces on the internal network support the access of a large number of network devices and saving switch costs; 2 gigabit network port on the external network support network fault tolerance and dual network IP setting, dual network isolation and other applications
- Remote access: Supports Internet remote access to devices, remote troubleshooting, remote log download, and remote device upgrade
- Local display control: Support VGA/HDMI display, standard mouse and keyboard input control, plug and play, convenient and fast
- Standard SDK interface: The standard SDK protocol supports interconnecting with cloud platforms and has strong external scalability
- Huge pictures storage: 4T 3.5" HDD and 128GB SSD
- Multi other interface: 2 RS-232, 1 RS-485, 2 alarm in, 2 alarm out, 4 USB, 1 audio in, 1 audio out
- Built-in Parking Management System software
| Terminal | |
|---|---|
| CPU | J6412, Elkhart Lake Platform Processor, 2 GHz |
| Memory | 4 GB |
| Storage | 3.5" 4T Surveillance-Level HDD+ 128GB SSD |
| Interface | |
| Indicator | 4 Indicators (1 x System Indicator, 1 x Hard Disk Status Indicator, 1 x Power Indicator, 1 x Alarm Indicator) |
| Audio | 1 x Audio Input (MIC IN)； 1 x Audio Output (AUDIO OUT) |
| Video Output | 1 x HDMI, 1 x VGA |
| Alarm Input | 2 x Alarm Input (ALARM IN) |
| Alarm Output | 2 x Alarm Output (ALARM OUT) |
| RS-232 | 2 x RS-232 Interface |
| RS-485 | 1 x RS-485 Interface |
| USB | 2 x USB 2.0 Interface, 2 x USB 3.0 Interface |
| Network Interface | 8 x 10 Mpbs/100 Mpbs Self-Adaptive Interface, supporting connecting with switch; 1 x Independent 100 Mpbs/1000 Mpbs Self-Adaptive Interface, supporting network isolation |
| General | |
| Material | Black Aluminum Material |
| Power Supply | 12V DC /5A |
| Power Consumption | Max.: 50 W Average: 25 W |
| Working Temperature and Humidity | -10 °C to 50 °C (14 °F to 122 °F); 10 % to 95% (No Condensation) |
| Storage Temperature and Humidity | -20 °C to 70 °C (-4 °F to 158 °F); 10 % to 95% (No Condensation) |
| Dimensions | 245 × 170 × 65 mm (9.65 × 6.69 × 2.56 inch) |
| Dimensions (with Package) | 450 × 240 × 105 mm (17.7 × 9.45 × 4.1 inch) |
| Weight | 2 kg (4.4 lb.) |
| Weight (with Package) | 2.5 kg (5.5 lb.) |
