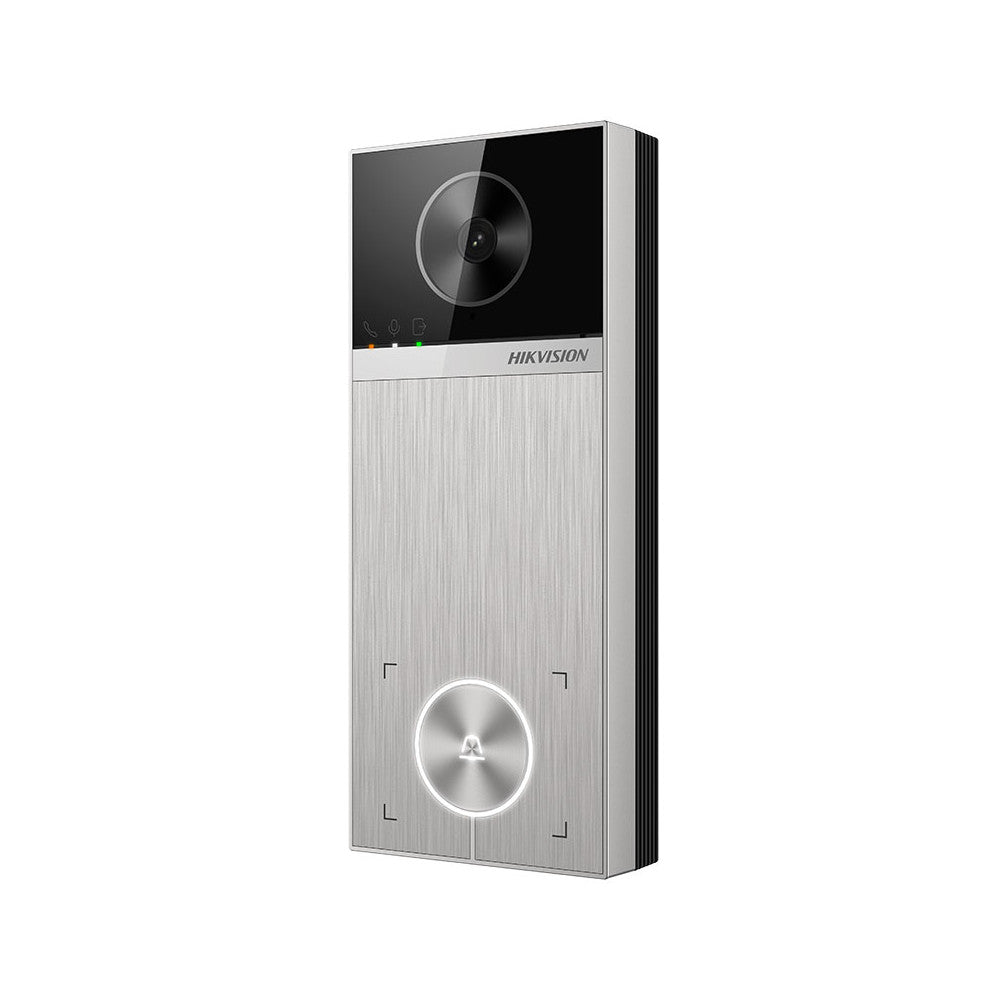

Hikvision Video Door Station DS-KV6114-MWBE1
Hikvision Video Door Station DS-KV6114-MWBE1
Model: DS-KV6114-MWBE1
Regular price
$281.00
Sale price
$281.00
Regular price
Available in stock
Open here
Couldn't load pickup availability
| Model | DS-KV6114-MWBE1 |
|---|---|
| Product Category | Video Intercom Products |
| Product Type | IP Series |
| Product Series | Pro Series |
| Offering | 6 Series Villa Door Stations |
| System Parameters | |
| Operating System | Linux |
| ROM | 4 GB |
| RAM | 512 MB |
| Processor | Embedded high-performance processor |
| Video Parameters | |
| Lens | 1 |
| Main Stream Resolution | 4 MP (2688 × 1520), 2 MP (1920 × 1080), 1 MP (1280 × 720) |
| Sub Stream Resolution | 2 MP (1920 × 1080), 1 MP (1280 × 720), 0.3 MP (640 × 480) |
| Field of View | 150° horizontal, 75° vertical |
| Wide Dynamic Range (WDR) | 120 dB |
| Supplement Light | IR, up to 3 m |
| Video Compression | H.264, H.265, MJPEG |
| Audio Parameters | |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729 |
| Audio Compression Bitrate | 8–64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Audio Performance | 80 dB at 50 cm (maximum 83 dB at 50 cm) |
| Audio Sample Rate | 16 kHz and 8 kHz |
| Capacity | |
| User Capacity | 2000 |
| Card Capacity | 6000 |
| Network Parameters | |
| Network Protocols | TCP/IP, RTSP, IPv6, ONVIF |
| Wi-Fi | 2.4 GHz Wi-Fi 6 (IEEE 802.11b/g/n/ax) |
| Bluetooth | Supported |
| Authentication | |
| Authentication Modes | Card, Bluetooth, Hik-Connect, indoor station |
| Card Type | M1 card |
| Card Frequency | 13.56 MHz |
| Card Reading Distance | 2–2.5 cm |
| Features | |
| Mobile App | Hik-Connect |
| Motion Detection | Supported |
| Playback | Supported |
| Elevator Calling | Supported |
| Sound Classification | Screams, glass breaking, crying, gunshots (recommended detection distance 3 m) |
| Device Interfaces | |
| Alarm Inputs | 4 (including exit button and door contact input) |
| Network Interface | 1 × RJ45, 10/100 Mbps self-adaptive |
| Tamper Detection | 1 |
| Exit Button | 1 |
| RS-485 | 1 |
| TF Card | Supports up to 128 GB, FAT32/exFAT |
| Lock Control | 2 relays, maximum 30 VDC / 2 A |
| Door Contact Input | 1 |
| General | |
| Call Button | 1 physical button |
| Installation | Surface mounting |
| Indicators | 3 |
| Weight | 273 g without package; 431 g with package |
| Protection | IP65 |
| Working Temperature | -40 °C to 60 °C |
| Working Humidity | 10–90% non-condensing |
| Dimensions (W × H × D) | 164 × 69 × 24.7 mm |
| Operating Environment | Outdoor |
| Power Consumption | <10 W |
| Power Supply | 12 VDC, 1.2 A; IEEE 802.3at PoE |
| Material | Plastic front and rear shells; glass window; metal panel in metal version is aluminum alloy |
| Power Supply Output | Maximum 12 VDC / 1 A |
