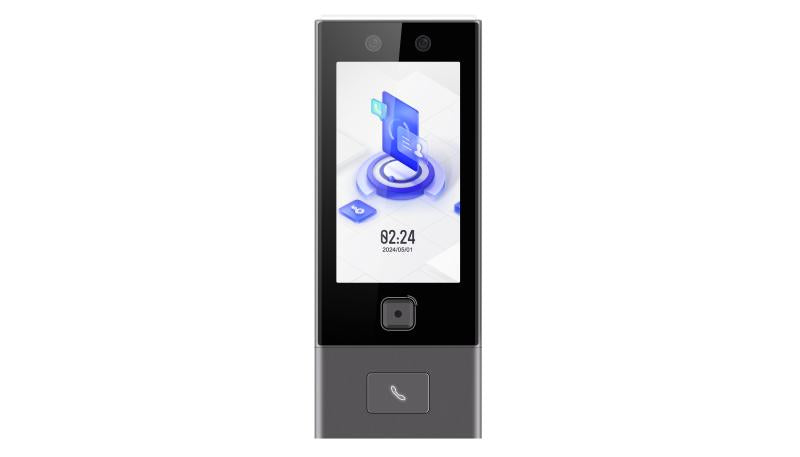

Hikvision Access Control Device DS-K1T670MWX-WBQR
Hikvision Access Control Device DS-K1T670MWX-WBQR
Model: DS-K1T670MWX-WBQR
Regular price
$1,322.00
Sale price
$1,322.00
Regular price
Available in stock
Open here
- Supports call function
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Supports M1 card
- Face mask detection
- 6000 face capacity, 50,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Connects with secure door control unit to realize 2 doors control. Using key fobs to control the 2 doors is available
- Supports single person and multiple people (up to 5 people) recognition
Couldn't load pickup availability
- Supports call function.
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens.
- Recognition distance: 0.3 to 3 m.
- Face recognition duration ＜ 0.2 s/User.
- Face recognition accuracy rate ≥ 99%.
- Supports M1 card.
- Face mask detection.
- 6000 face capacity, 50,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6).
- Connects with secure door control unit to realize 2 doors control. Using key fobs to control the 2 doors is available.
- Supports single person and multiple people (up to 5 people) recognition.
- Supports face duplicate check, preventing multiple people from using the same face
- Supports attendance-only function
- Supports the following SIP servers: ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs, Kamailio
- Supports Push SDK
- Supports customed Wiegand parameters
| System | |
|---|---|
| Operation system | Linux |
| Display | |
| Resolution | 600 × 1024 |
| Size | 7-inch |
| Type | Touch screen |
| Video | |
| Pixel | 2 MP |
| Lens | Dual-lens |
| WDR | Support |
| Video standard | PAL (Default)/NTSC |
| Network | |
| Wireless Network | 433 MHz |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Wired network | Support 10/100/1000 Mbps self-adaptive |
| Interface | |
| Alarm input | 2 |
| Alarm output | 1 |
| USB | 1 Type-A (For Module) |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| Capacity | |
| User capacity | 6000 |
| Card capacity | 50,000 |
| Face capacity | 6000 |
| Event capacity | 150,000 |
| Authentication | |
| Face recognition accuracy rate | ≥ 99% |
| Card type | M1 card |
| Card reading distance | 0 to 5 cm |
| Card reading duration | ＜ 1 s |
| Face recognition duration | ＜ 0.2 s per person |
| Face recognition distance | 0.3 to 3 m |
| General | |
| Power supply | 12 VDC/2 A |
| Button | Press the button to call |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10 to 90% (no condensing) |
| Power consumption | ≤ 10 W |
| Protective level | IP65 |
| Dimensions | 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94") |
| Anti-corrosion | 48 H (about 2 years) |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Brazilian Portuguese, Japanese, Korean, Chinese Traditional, French, Turkish, Kazakh and Uzbek. |
| Gross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb) | |
| Function | |
| Configuration via Web browser | Support |
| Hik-Connect | Support |
| Two-way audio | Support |
| QR code recognition | Support |
| Face mask recognition | Support |
| Time synchronization | Support |
| Face recognition | Support |
| Face anti-spoofing | Support |
| Live view | Support |
| Audio prompt | Support |
