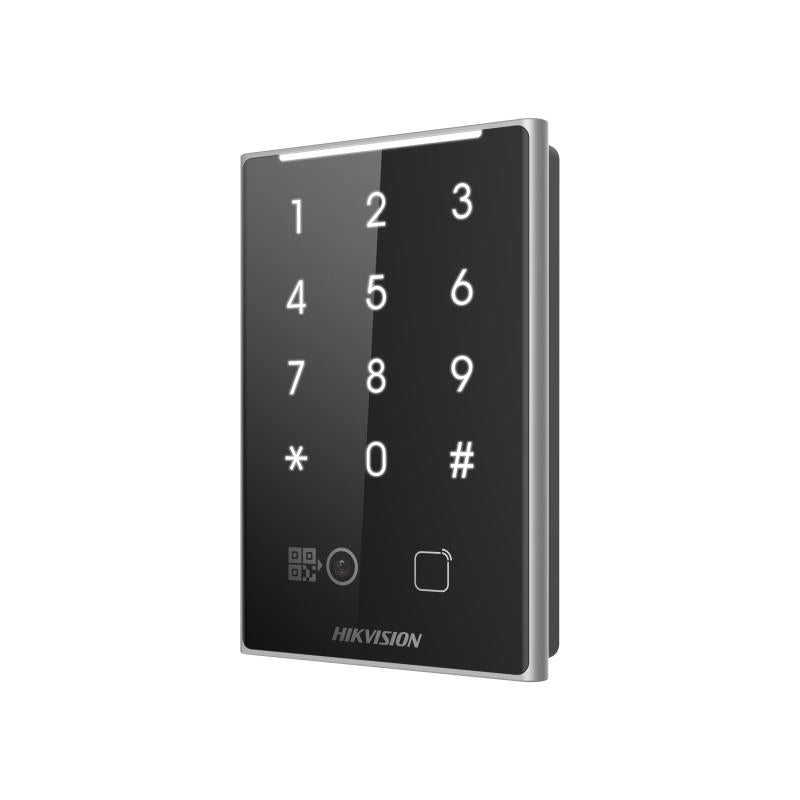

Hikvision Card Reader DS-K1109DKB-QR
Hikvision Card Reader DS-K1109DKB-QR
Model: DS-K1109DKB-QR
Regular price
$176.00
Sale price
$176.00
Regular price
Available in stock
Open here
- Supports RS-485 and Wiegand (W26, W34) protocol
- Supports reading DESfire card, Felica card and M1 card
- Supports authentication via card, password and QR code
- Supports bluetooth module (when connecting by RS-485)
- Tamper-proof function
Couldn't load pickup availability
- Supports RS-485 and Wiegand (W26, W34) protocol
- Supports reading DESfire card, Felica card and M1 card
- Supports authentication via card, password and QR code
- Supports bluetooth module (when connecting by RS-485)
- Tamper-proof function
| Interface | |
|---|---|
| TAMPER | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Authentication | |
| Card type | M1 card;DESfire card;Felica card |
| General | |
| Power supply | 12 VDC |
| Power consumption | With load: ≤ 14 w Without load: ≤ 4 w |
| Working temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Working humidity | 0 to 90% (no condensing) |
| Dimensions | 125 mm × 84.5 mm × 18 mm (4.92" × 3.33" × 0.71") |
| Installation | Wall mounting |
| ≤ 1 kg (2.20 lb) | |
| Buzzer | Support |
| Function | |
| Barcode recognition | Support Format: Code 128, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codebar, Code 9 and UCC/EAN-128 |
| QR code recognition | Support (when connecting by RS-485) |
