Data Sheet

Code du produit:

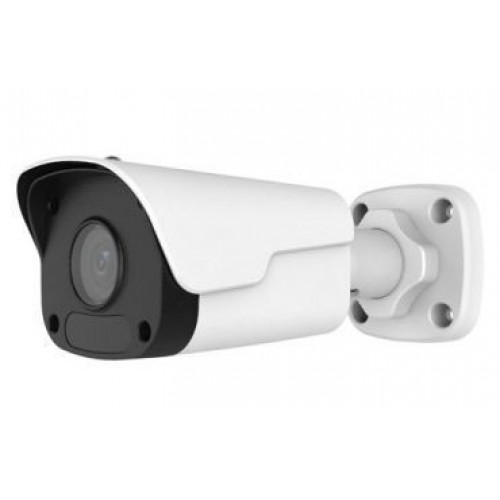

SC-2045WD-IS-F28

Résumé:

4MP, 2560x1440, @25fps, Ultra265, 120dB WDR, Motion Detection, People Counting, Face Detection, Intrusion Prevention, IR, up to 30m (98ft), MicroSD slot, IP67, 2.8mm Lens, Manual VF, DC12V

Optics

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* 9:16 corridor format

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* IP67





Camera
Sensor1/3", progressive scan,4.0 megapixel, CMOS
Lens2.8mm@F1.8

DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm8132.416.28.1

Angle of View(H)86.4°49.9°24.1°
Angle of View (V)43.6°
Angle of View (O)112.3°
Adjustment anglePan: 0°~360°Tilt: 0°~90°Rotate: 0°~360°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>55dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:4MP (2592×1520): Max. 20 fps?4MP (2560×1440): Max. 25 fps?3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max.30fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection?Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H)157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight0.45kg(0.99 lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
