• Optics

    • Starlight illumination

    • Day/night functionality

    • Smart IR , up to 30 m (98 ft) IR distance

    • Optical glass window with higher light transmittance

    • IR anti-reflection window to increase the infrared transmittance

    • 2D/3D DNR (Digital Noise Reduction)

    Compression

    • Ultra 265,H.265, H.264, MJPEG

    • Embedded smart algorithm

    • Triple streams

    • 9:16 corridor format

    Network

    • ONVIF Conformance

    Structure

    • Wide temperature range: -35°C to 60°C (-31°F to 140°F)

    • Wide voltage range of ±25%

    • IP67

    • 3-Axis

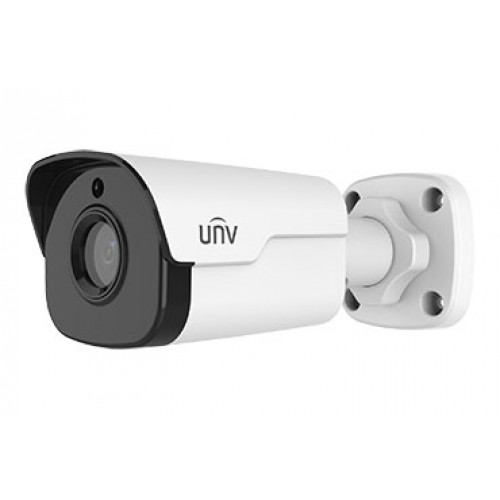

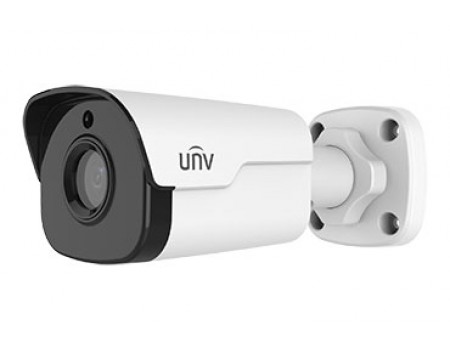

IPC2125SR3-ADUPF40
IPC2125SR3-ADUPF60
Camera
Sensor1/2.7", progressive scan, 5.0megapixel, CMOS
Lens4.0mm@F1.66.0mm@F1.6
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
4mm9036189
6mm135542713.5
Angle of View(H)79.7°50.5°
Angle of View (V)51.835.9
Angle of View (O)98.162.1
AdjustmentanglePan: 0°~360°Tilt: 0°~90°Rotate:0°~360°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.005 Lux (F1.6, AGC ON)
0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:5MP(2592 x 1944): Max.20 fps,5MP(2592 x 1944): Max.25fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps;
Third Stream: D1(720 x 576): Max.30 fps;
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
Recognition:Face detection?Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8 KHZ
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible IntegrationONVIF(Profile S), API
Interface
Built-in MicSupported
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%,PoE(IEEE802.3 af)
Power consumption: Max 6.4W
Dimensions (L × W × H)157.3 ×62.4 ×63mm (6.2” × 2.5” × 2.5”)
Weight0.45 kg (0.99 lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
